If you’re looking for the same depth for the Bosch DIVAR IP all-in-one 6000, here is the high-performance content upgrade. While the 4000 is for SMEs, the 6000 is the “Enterprise Workhorse” designed for high-density environments requiring massive storage and redundancy.

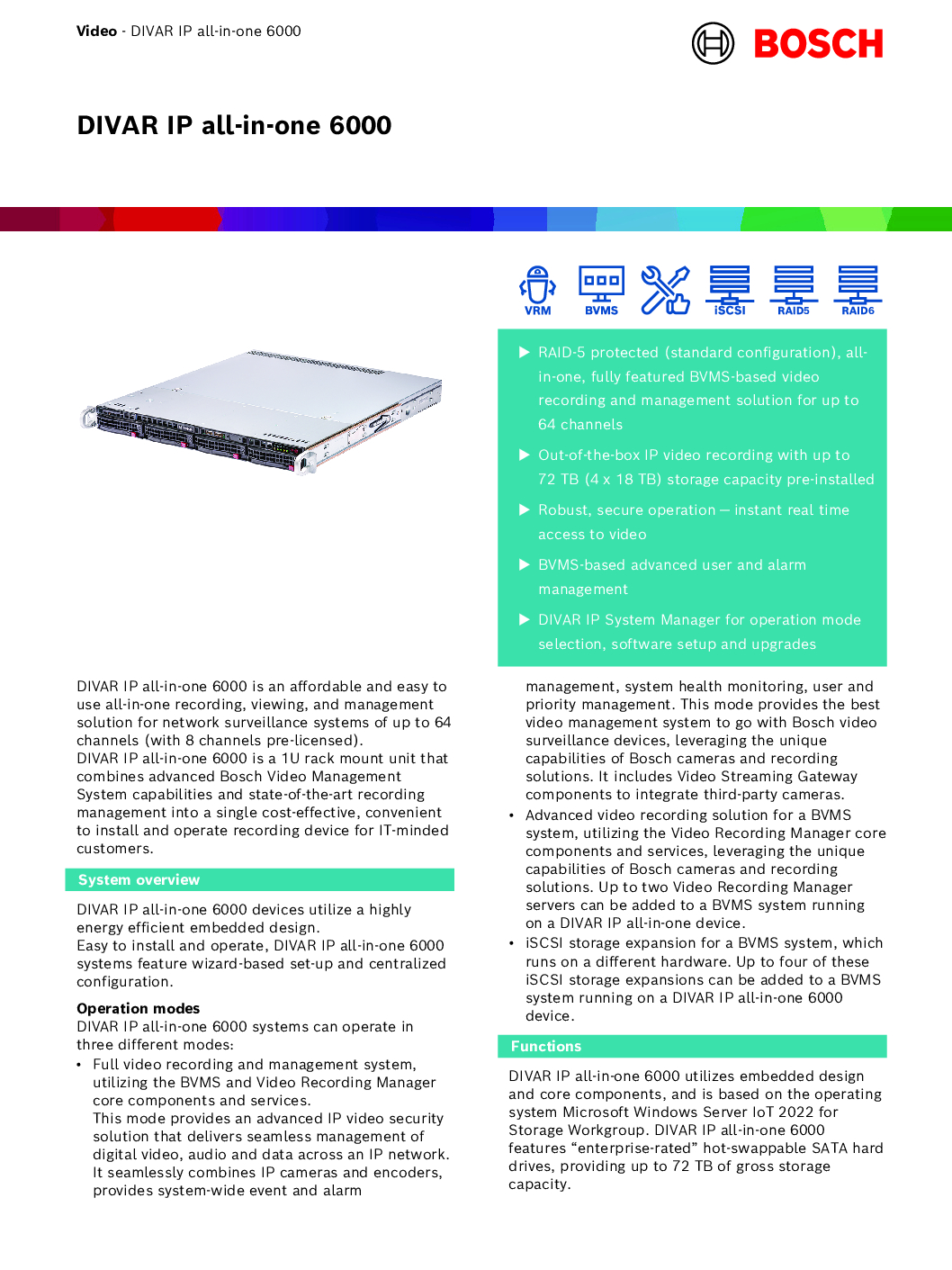

Bosch DIVAR IP all-in-one 6000: Enterprise Surveillance Redefined
When security is mission-critical and data loss is not an option, the Bosch DIVAR IP all-in-one 6000 is the professional choice. This 1U rack-mount powerhouse is designed for high-density environments, offering double the capacity and enhanced redundancy compared to the 4000 series. It is the ultimate bridge between mid-range recording and massive data-center surveillance.
Key Performance Upgrades
Massive 64-Channel Capacity: Supports up to 64 IP cameras (8 pre-licensed), making it ideal for large warehouses, schools, or multi-story commercial buildings.
RAID 5 Redundancy: Unlike standard NVRs, the 6000 comes pre-configured with RAID 5. If one hard drive fails, your data remains intact and the system keeps recording without downtime.
72TB Storage Ceiling: With 4 high-speed HDD bays supporting up to 18TB each, you can store months of 4K footage without needing external expansion.
Rack-Ready Efficiency: The 1U slim-form factor is designed for professional server racks, saving valuable space while providing enterprise-grade cooling.
Technical Specifications (The 6000 Series Advantage)
| Feature | DIVAR IP all-in-one 6000 |
| Max Channels | Up to 64 (8 pre-licensed) |
| Storage Bays | 4 x Hot-swappable SATA bays |
| Max Internal Storage | Up to 72 TB (4 x 18 TB) |
| RAID Support | RAID 5 (Standard) / RAID 6 (Optional) |
| Throughput | 400 Mbps Recording Bandwidth |
| Graphics | Dual DisplayPort (4K support) + 1 DVI-D |
| Processor | Intel Core i3-10100E (Quad Core) |
Why ChoiceCycle Recommends the DIVAR IP 6000
For our clients at ChoiceCycle, the 6000 series is our “go-to” for projects where reliability is the top priority.
Hot-Swappable Protection: You can replace a faulty drive while the system is still running. This “zero-downtime” feature is essential for high-security sites in Singapore.
BVMS Plus Integration: It runs BVMS Plus, allowing for advanced alarm management and seamless integration with third-party systems via the Video Streaming Gateway.
Future-Proof Throughput: With a 400 Mbps bandwidth, this unit can handle a full fleet of 4K and AI-enabled cameras without stuttering or frame loss.
Target SEO Keywords for DIVAR IP 6000
Use these to differentiate your listings from the 4000 series:
Bosch DIVAR IP 6000 Singapore
RAID 5 NVR for Enterprise
72TB Surveillance Storage
64 Channel Bosch BVMS NVR
Rackmount NVR Sim Lim Square
Hot-swappable HDD CCTV Recorder
Enterprise Video Management Appliance
Contact ChoiceCycle for a Site Survey
Upgrading to an enterprise system requires a professional touch. ChoiceCycle provides full rack-mount installation, network optimization, and BVMS configuration for your Bosch 6000 system.
ChoiceCycle SGCCTV
Address: 1 Rochor Canal Road, Sim Lim Square #02-81, Singapore 188504
WhatsApp: +65 9853 4404 / +65 9025 4466
Technical Support: +65 8198 5572
Email: enquiry@choicecycle.com.sg
Operating Hours: 10:30 AM – 6:30 PM (Daily)
Websites: www.choicecycle.com.sg | www.sgcctv.com.sg
The Bosch DIVAR IP all-in-one 6000: The Enterprise-Grade Infrastructure Standard
While the DIVAR IP 4000 excels in small-to-medium office environments, the Bosch DIVAR IP all-in-one 6000 is engineered for the “Always-On” enterprise. This 1U rack-mount appliance is more than a recorder; it is a high-availability server platform designed to manage dense camera populations, massive data throughput, and mission-critical reliability.
Section 1: Introduction – Scaling Beyond the Standard
In large-scale deployments—such as multi-story commercial complexes, industrial plants, or large educational campuses—the stakes for security are significantly higher. A few minutes of downtime isn’t just an inconvenience; it’s a liability.
The DIVAR IP 6000 series addresses these enterprise needs by providing a hardware-redundant, high-bandwidth platform. It leverages the full power of Bosch Video Management System (BVMS) and Video Recording Manager (VRM) to deliver a recording solution that scales up to 64 channels with a massive 400 Mbps recording bandwidth.
Section 2: Hardware Architecture – Built for the Server Room
Unlike the 4000’s mini-tower design, the 6000 is a professional 1U rack-mount chassis. This form factor is designed for integration into standard IT server racks, ensuring optimized airflow and professional cable management.
Processor and Computing Power
To handle the processing requirements of 64 simultaneous 4K streams, the DIVAR IP 6000 utilizes an Intel Core i3-10100E Quad-Core processor. This workstation-class CPU is optimized for constant high-load tasks, ensuring that video indexing, metadata processing, and dynamic transcoding happen in real-time without bottlenecking the system.
Redundant OS Storage
A major differentiator for the 6000 series is the separation of the Operating System and the Video Data.
The OS: Runs on dual 120GB SSDs in a RAID-1 configuration. This means if the primary OS drive fails, the system continues to run from the mirrored drive, preventing a total system crash.
The Data: Video is stored on the primary 3.5-inch SATA bays.
Section 3: Data Integrity – RAID 5 as the Standard
One of the most critical features of the DIVAR IP 6000 is its native support for RAID 5 (Redundant Array of Independent Disks).
Why RAID 5 is Essential for Enterprise
In a standard NVR, if a hard drive fails, you lose all the footage on that drive. In an enterprise setting, this is unacceptable.
Parity Protection: RAID 5 uses “parity” data distributed across all drives. If any single drive fails, the remaining drives use that parity data to “reconstruct” the missing video in real-time.
Hot-Swappability: The DIVAR IP 6000 features front-access, hot-swappable bays. You can pull out a failed drive and slide in a new one while the system is still recording. The system will automatically rebuild the array in the background.
Section 4: Massive Storage Potential
The DIVAR IP 6000 is designed for long-term retention.
Max Capacity: With 4 high-capacity bays supporting 18TB drives, the unit offers up to 72TB of raw storage.
iSCSI Expansion: If 72TB isn’t enough, the unit is fully compatible with Bosch’s external iSCSI storage arrays (like the DSA E-Series), allowing you to expand your storage pool into the petabytes without replacing the head-end unit.
Section 5: BVMS Plus – Advanced Management Capabilities
The DIVAR IP 6000 is designed to run BVMS Plus (or BVMS Professional). This software suite unlocks features that are often required by professional security teams in Singapore:
1. Advanced Alarm Management
BVMS Plus allows for complex alarm logic. For example, an alarm can be triggered only if two separate events happen simultaneously (e.g., a “Door Forced” alarm combined with “Motion Detected” in a restricted zone).
2. Multi-User Hierarchy
In an enterprise, different people need different levels of access. The 6000 allows for granular permission sets. A security guard might only see live video, while a manager can view playback and export footage, and an IT admin can change system settings.
3. Video Streaming Gateway (VSG)
The VSG allows the DIVAR IP 6000 to easily integrate with non-Bosch cameras. It acts as a middleman that standardizes the video streams, ensuring that even third-party ONVIF cameras can utilize Bosch’s high-efficiency recording engine.
Section 6: Comparing the 4000 vs. 6000 Series
Feature DIVAR IP all-in-one 4000 DIVAR IP all-in-one 6000 Form Factor Mini-Tower (Desktop) 1U Rack-mount Max Channels 32 Channels 64 Channels Recording Bandwidth 250 Mbps 400 Mbps Storage Bays 2 Bays (Up to 36TB) 4 Bays (Up to 72TB) Storage Protection JBOD / RAID 1 RAID 5 / RAID 6 OS Drive Single Drive Dual SSD (RAID 1) Target Use Case Small Offices / Retail Warehouses / Multi-site / Industrial Section 7: Cyber Security – Hardened for the Modern Threat
As cyber threats evolve, your NVR should not be the weakest link in your network. Bosch applies a “Secure-by-Design” philosophy to the 6000 series:
Microsoft Windows Server IoT 2022: A high-stability OS designed for industrial use, receiving regular security patches directly from Microsoft and Bosch.
Certificate Management: Supports PKI (Public Key Infrastructure) to ensure that only authorized cameras and clients can talk to the NVR.
Encrypted Storage: Video data can be encrypted at rest, ensuring that if a hard drive is physically stolen, the footage cannot be viewed on another machine.
Section 8: Deployment Workflow – The ChoiceCycle Expert Approach
At ChoiceCycle, we ensure that your DIVAR IP 6000 is tuned for maximum performance. Our deployment process includes:
Step 1: Network Load Balancing
With 400 Mbps of traffic, the network must be perfect. We utilize the dual Gigabit LAN ports on the 6000 to “Team” the network connections, providing both increased bandwidth and failover protection if one network cable or switch port fails.
Step 2: RAID Configuration & Testing
Before delivery, we perform a “Burn-in” test. We configure the RAID 5 array and simulate a drive failure to ensure the rebuild process is seamless and the data remains uncorrupted.
Step 3: Remote Access Setup
We configure Bosch’s Dynamic Transcoding and the Video Security App. This allows you to monitor your enterprise site from anywhere in the world with zero lag, using the unit’s hardware-accelerated transcoding engine.
Section 9: Why Choose ChoiceCycle for Your Bosch 6000 Deployment?
The DIVAR IP 6000 is a sophisticated piece of IT equipment. It requires more than just a “plug-in” setup; it requires an understanding of RAID, IP networking, and BVMS software.
Certified Engineers: Our team is trained in Bosch Security Systems, ensuring your installation meets global standards.
Local Sim Lim Square Presence: Need a spare HDD or a technical consultation? We are centrally located and ready to assist.
Customized Maintenance: We offer preventive maintenance to clean cooling fans, update firmware, and check HDD health, ensuring your 6000 series lasts for years.
Section 10: Frequently Asked Questions (FAQ)
Q: Can I upgrade a DIVAR IP 4000 to a 6000? A: They are different hardware platforms. However, you can move your Bosch camera licenses between units if you are upgrading your site’s hardware.
Q: Does the 6000 support 4K cameras? A: Yes. It is fully optimized for 4K UHD Bosch cameras, with enough processing power to handle multiple 4K streams at high frame rates.
Q: What happens if two hard drives fail at the same time in RAID 5? A: RAID 5 can only survive one drive failure. For ultra-critical sites, we can configure the 6000 in RAID 6, which allows for two simultaneous drive failures without data loss.
Contact ChoiceCycle for Your Enterprise Security Solution
Elevate your security to the professional tier. Contact ChoiceCycle today for a customized proposal on the Bosch DIVAR IP all-in-one 6000.
ChoiceCycle SGCCTV
Showroom: 1 Rochor Canal Road, Sim Lim Square #02-81, Singapore 188504
WhatsApp / Call: +65 9853 4404 / +65 9025 4466
Technical Support: +65 8198 5572
Email: enquiry@choicecycle.com.sg
Websites: www.choicecycle.com.sg | www.sgcctv.com.sg
Operational Hours: 10:30 AM – 6:30 PM (Daily)
Section 11: Advanced Storage Management – Beyond Traditional RAID
In an enterprise environment, storage is more than just “space”—it is a strategic asset. The DIVAR IP all-in-one 6000 utilizes Bosch’s proprietary Video Recording Manager (VRM) to optimize how data is written to the 72TB array.
Eliminating the “RAID Hole”
Traditional NVRs use hardware RAID, which can sometimes suffer from performance degradation during a “rebuild” (when a failed drive is replaced). Bosch VRM works at the software layer to balance the load.
Virtualization of Storage: VRM treats all four 18TB drives as a single “virtual” pool.
Load Balancing: If one drive is busy writing a high-bandwidth 4K stream, VRM intelligently shifts the next stream to a different drive, ensuring no single disk becomes a bottleneck.
Data Aging and Retention Policies
For many Singaporean businesses, compliance (such as PDPA or industry-specific insurance requirements) dictates how long footage must be kept. The DIVAR IP 6000 allows for Granular Retention Policies:
Critical Cameras: Keep 4K footage for 90 days.
General Areas: Keep 1080p footage for 30 days.
Automatic Deletion: The system automatically purges the oldest data to make room for the new, ensuring you never run out of space unexpectedly.
Section 12: The “Remote Portal” – Global Access for Singaporean Executives
Many ChoiceCycle clients manage businesses across multiple locations—perhaps a warehouse in Tuas, an office in the CBD, and a retail outlet in Sim Lim Square. The Bosch Remote Portal integrates perfectly with the DIVAR IP 6000.
Secure Cloud Connectivity
While the video is stored locally (on-premise) for security, the Remote Portal acts as a secure bridge.
No Port Forwarding: Traditional NVRs require “opening ports” on your router, which is a major security risk. Bosch uses a secure outbound tunnel.
Health Monitoring: You can receive an email or push notification if a camera goes offline or if the NVR detects a temperature spike in the server room.
The Video Security App
The 6000 series supports the latest Bosch mobile applications, providing:
PTZ Control: Pinch-to-zoom and move your speed dome cameras directly from your phone.
Timeline Scrubbing: A smooth, intuitive way to look back at footage without needing to be at a workstation.
Section 13: Operational Intelligence – AI Beyond Security
The DIVAR IP 6000 isn’t just for catching “bad guys.” In 2026, it’s a tool for Business Intelligence.
Heat Mapping for Retailers
By analyzing metadata sent to the 6000, managers can generate heat maps. This shows which aisles in a store have the most “dwell time.”
Occupancy Counting
For safety compliance in Singapore, the DIVAR IP 6000 can track how many people are currently inside a building. If the limit is reached, it can trigger an alert on the digital signage at the entrance.
Section 14: Technical Maintenance – Keeping the “6000” at Peak Performance
ChoiceCycle emphasizes a “Preventative” rather than “Reactive” approach to maintenance for the 6000 series.
Thermal Efficiency
The 1U chassis is compact. In Singapore’s humid climate, dust buildup can lead to overheating.
Dust Filtration: The unit features high-quality fans that pull air through the front and out the back.
ChoiceCycle Service: Our maintenance packages include physical internal cleaning and thermal paste checks to ensure the Intel Quad-Core processor stays cool while under 24/7 loads.
Software Lifecycle Management
The DIVAR IP 6000 is a “living” product. Bosch releases BVMS Service Packs regularly.
Feature Updates: New AI capabilities or improved UI layouts.
Compatibility: Ensuring the NVR remains compatible with the latest Windows security updates and browser versions for web-viewing.
Section 15: Conclusion – The Ultimate Security Investment
Choosing the Bosch DIVAR IP all-in-one 6000 is an investment in long-term peace of mind. For businesses that have outgrown “off-the-shelf” home security kits and require a system that can handle 64 cameras, RAID 5 protection, and enterprise AI, there is no better choice in the Singapore market.
ChoiceCycle: Your Partner in Professional Surveillance
At ChoiceCycle, we don’t just provide the equipment; we provide the solution. From initial site survey to final commissioning and staff training, we are with you every step of the way.
ChoiceCycle SGCCTV
Showroom: 1 Rochor Canal Road, Sim Lim Square #02-81, Singapore 188504
WhatsApp: +65 9853 4404 / +65 9025 4466
Technical Support: +65 8198 5572
Email: enquiry@choicecycle.com.sg
Operating Hours: 10:30 AM – 6:30 PM (Daily)
Websites: www.choicecycle.com.sg | www.sgcctv.com.sg
[Summary Table for SEO Descriptions]
Factor Detail Model Bosch DIVAR IP all-in-one 6000 Ideal For High-density sites, Corporate Racks, Industrial Facilities Storage 72TB Max (4 Bays, RAID 5) Software BVMS Plus / VRM Optimized Connectivity Dual LAN, Remote Portal Support Vendor ChoiceCycle SGCCTV Singapore
Section 16: Advanced System Architecture – The Power of Decoupling
One of the primary reasons enterprise clients choose the DIVAR IP 6000 over cheaper alternatives is its architectural “decoupling.” In a standard NVR, the database, the recording engine, and the management software all compete for the same resources. In the 6000 series, Bosch uses a sophisticated software stack to separate these functions.
The Role of the Video Recording Manager (VRM)
The VRM acts as the traffic controller for your data. Instead of writing video directly to a specific folder on a hard drive (which can lead to fragmentation), VRM treats the 72TB RAID 5 array as a pool of blocks.
Seamless Failover: If the 6000 is part of a larger network, the VRM can redirect recording to a secondary unit if the primary one undergoes maintenance.
Metadata Parallelism: While the video is being written, the system simultaneously indexes metadata (AI tags). This dual-path processing is why Bosch systems can perform a “Forensic Search” across weeks of data in seconds.
Section 17: Network Security Hardening in a Singaporean Context
With the rise of cybersecurity threats targeting IoT devices, ChoiceCycle emphasizes the “Hardened” nature of the DIVAR IP 6000. For Singaporean businesses complying with local cybersecurity labeling schemes or international standards, the 6000 series provides:
1. Unified User Management
The system integrates with Microsoft Active Directory. This means your IT manager can use the same credentials for the CCTV system as they do for company emails. When an employee leaves the company, revoking their office access automatically revokes their ability to view the cameras.
2. HTTPS/TLS Encryption
By default, ChoiceCycle configures the 6000 to use encrypted communication between the cameras and the NVR. This prevents “sniffing,” where a hacker might try to view the video feed by tapping into the local network cables.
3. Lockdown Mode
The Windows Server IoT 2022 environment can be put into a “Locked” state. In this mode, no new software can be installed, and unauthorized USB devices are blocked, preventing the accidental introduction of malware via a technician’s thumb drive.
Section 18: Operational Workflow – Monitoring a Large-Scale Site
For a 64-channel deployment—such as a large industrial site in Jurong—managing the views is a challenge. The DIVAR IP 6000 utilizes BVMS Plus to make this manageable:
Mapping and GIS Integration
Instead of clicking a list of camera names (e.g., “Camera 01,” “Camera 02”), operators can use a Graphical Map. You can upload a floor plan of your facility to the NVR. When an alarm goes off, the corresponding camera icon on the map flashes red.
The “Alarm Task Assistant”
In high-stress situations, security guards might forget protocol. The DIVAR IP 6000 can be programmed with an “Alarm Task Assistant.” When a specific incident occurs (like a perimeter breach), a window pops up on the screen with a checklist:
Verify the intruder.
Call the site manager at +65 XXXX XXXX.
Dispatch the security team to Zone 4.
Section 19: Future-Proofing with AI Upgrades
The DIVAR IP 6000 is designed to grow as AI technology evolves. Even if you install “standard” cameras today, the NVR is powerful enough to handle the metadata of tomorrow’s Neural Network based cameras.
Deep Learning Analytics
As Bosch releases new “AI Tasks” (such as social distancing monitoring, face mask detection, or specific vehicle type recognition), the 6000 series can be updated to support these new data types without requiring a hardware replacement.
Cloud-Hybrid Flexibility
While the 6000 is an on-premise powerhouse, it is “Cloud-Ready.” ChoiceCycle can configure a hybrid setup where critical event clips are backed up to a secure cloud, while the 24/7 high-resolution footage stays safely on your local 72TB array.
Section 20: Summary Checklist for Enterprise Buyers
When comparing the DIVAR IP 6000 to other market offerings, ensure your solution includes:
RAID 5 Configuration: Standard for the 6000 series to protect against drive failure.
Dual SSD Boot Drives: For OS redundancy and faster system restarts.
Licensed for Growth: Ensure you have enough BVMS licenses for your current and future camera count.
ChoiceCycle 5-Year Maintenance Plan: To ensure your enterprise investment is protected.
Partner with ChoiceCycle for Professional Security
The Bosch DIVAR IP all-in-one 6000 is the pinnacle of recording technology. To see a live demo of the BVMS software or to discuss a custom 64-channel deployment, visit our showroom at Sim Lim Square.
ChoiceCycle SGCCTV
Address: 1 Rochor Canal Road, Sim Lim Square #02-81, Singapore 188504
WhatsApp: +65 9853 4404 / +65 9025 4466
Technical Support: +65 8198 5572
Email: enquiry@choicecycle.com.sg
Operating Hours: 10:30 AM – 6:30 PM (Daily)
Websites: www.choicecycle.com.sg | www.sgcctv.com.sg
