EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
EATON 5E2200UI-EA 2200VA UPS with AVR, Surge Protection, 6 Outlets & USB | Power Backup for CCTV NVR, Router & PC Singapore

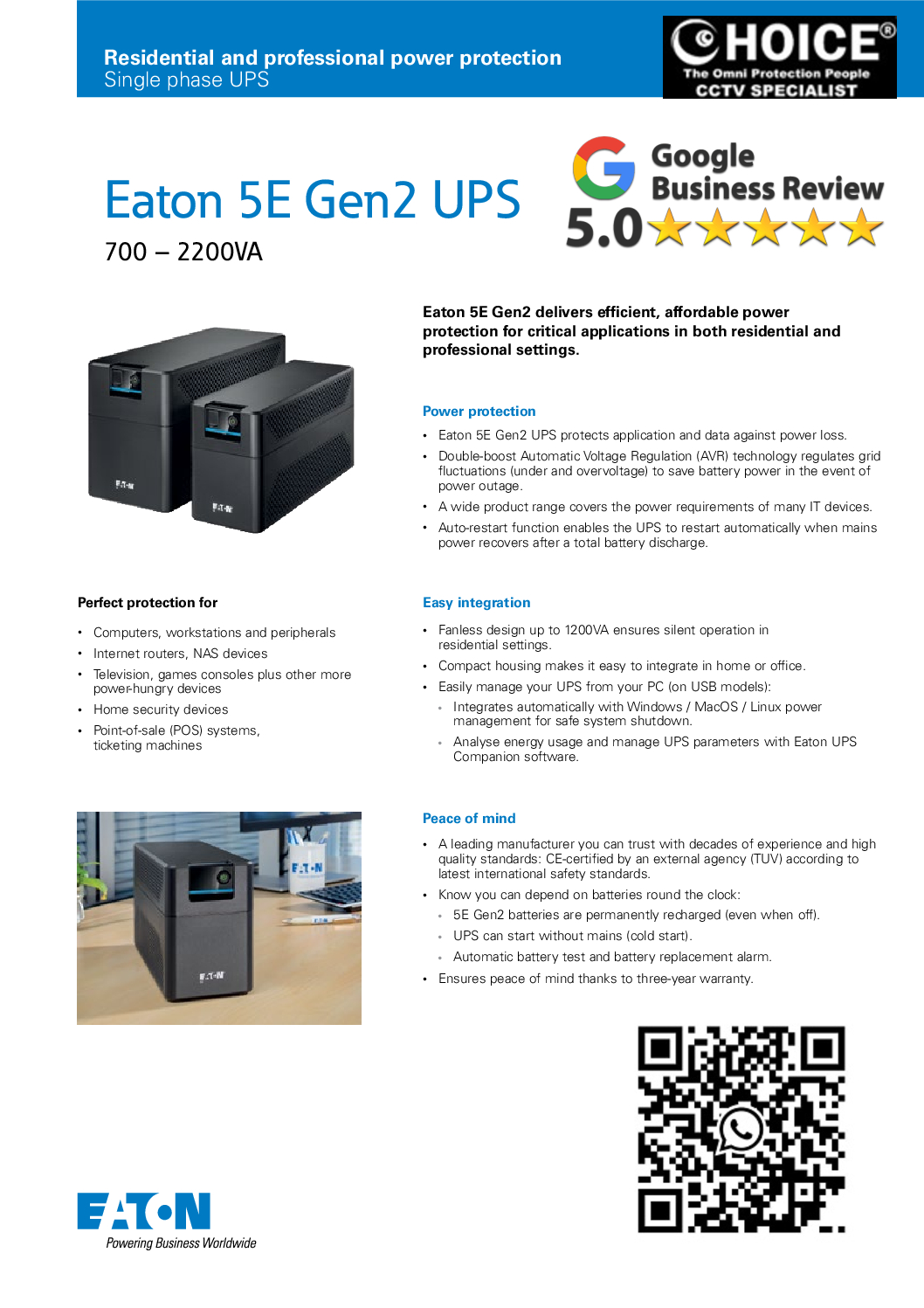

The EATON 5E2200UI-EA Gen2 UPS is a powerful 2200VA Line-Interactive Uninterruptible Power Supply designed to provide dependable battery backup and electrical protection for CCTV systems, NVRs, DVRs, computers, routers, network switches, workstations and small business IT equipment.
Compared with smaller desktop UPS models, the Eaton 5E 2200VA provides greater capacity for installations where several devices need to remain operational during short power interruptions.
With Automatic Voltage Regulation (AVR), surge protection, six IEC output sockets and USB communication, it provides an economical and practical power-protection solution for offices, security rooms, retail premises and network installations.
EATON 5E2200UI-EA Key Specifications
| Specification | EATON 5E2200UI-EA |
|---|---|
| UPS Capacity | 2200VA / 1200W |
| UPS Technology | Line-Interactive |
| Input Voltage | 220–240VAC |
| Input Voltage Range | 140–300VAC |
| Output Voltage | 220 / 230 / 240VAC |
| AVR | Yes – Automatic Voltage Regulation |
| Output Connections | 6 × IEC C13 |
| Input Connection | IEC C14 |
| Battery | 2 × 12V 9Ah |
| USB Communication | Yes – HID USB |
| Cold Start | Yes |
| Surge Protection | Yes |
| Form Factor | Tower |
| Application | CCTV, NVR, PC, Router, Network Equipment |
2200VA / 1200W Power Capacity
The EATON 5E2200UI-EA provides:
2200VA / 1200W
This gives it significantly more usable power than the 1200VA model and makes it suitable for larger equipment combinations.
Typical applications can include:
CCTV NVR / DVR
Multiple Hard-Disk Recorders
PoE Network Switch
Internet Router
Firewall
Desktop PC
LCD Monitor
Small NAS
Security Workstation
Network Equipment
The actual connected equipment must be calculated according to its maximum wattage, not simply by counting how many devices are connected.
AVR – Automatic Voltage Regulation
The built-in:
AVR – AUTOMATIC VOLTAGE REGULATION
helps protect connected equipment when incoming utility voltage fluctuates.
Instead of immediately switching to battery whenever the mains voltage changes, AVR can regulate certain over-voltage and under-voltage conditions.
UNSTABLE AC POWER
↓
EATON AVR
↓
REGULATED OUTPUT
↓
CCTV / PC / NETWORK EQUIPMENT
This helps preserve battery capacity for actual power failures.
Surge Protection
Sensitive electronics can be affected not only by blackouts but also by electrical disturbances.
The EATON 5E2200UI-EA provides integrated surge protection, adding another layer of protection for connected equipment such as:
NVRs
DVRs
PCs
Network Switches
Routers
Storage Devices
Security Equipment
For exposed outdoor CCTV systems, dedicated Ethernet surge protection and a correctly engineered grounding system may still be required in addition to the AC UPS.
Ideal UPS for CCTV Systems
A CCTV surveillance system may depend on several devices operating simultaneously:
IP CAMERAS
↓
PoE SWITCH
↓
NVR
↓
HARD DISKS
↓
ROUTER / INTERNET
If power fails, the entire chain can stop.
The EATON 5E2200UI-EA can provide temporary battery backup for appropriately sized CCTV equipment, helping maintain surveillance during short power interruptions.
Protect Your NVR & CCTV Recording
CCTV recorders continuously write video to their internal hard disks.
An unexpected power failure can cause:
Immediate NVR Shutdown
Recording Interruption
Remote Viewing Loss
Network Disconnection
Improper HDD Shutdown
A UPS creates a temporary power buffer between the electrical supply and the surveillance system.
230VAC
↓
EATON 5E2200UI-EA
↓
NVR + SWITCH + ROUTER
↓
CCTV CONTINUES OPERATING
For longer blackouts, the UPS provides time for controlled shutdown where supported.
UPS for PoE CCTV Systems
The 2200VA model can be particularly useful where the CCTV installation includes a PoE switch.
For example:
16 × IP CAMERAS
↓
16-PORT PoE SWITCH
↓
NVR
↓
ROUTER
The UPS can potentially protect the core equipment and camera power simultaneously if the combined maximum load remains within the UPS capacity.
When sizing a CCTV UPS, calculate:
NVR Wattage
Hard-Disk Consumption
PoE Switch Consumption
Total Camera PoE Consumption
Router / Network Equipment
Suitable Safety Margin
This provides a much more accurate design than selecting a UPS based only on VA.
Backup for Router & Network Switch
During a blackout, a laptop may continue working on its battery while the Internet immediately disappears.
Why?
Because the:
Router
Network Switch
WiFi Access Point
ONT / Modem
may have lost power.
Connecting appropriately sized network equipment to the Eaton UPS can help keep communications operational during short outages.
This is useful for:
Offices
CCTV Remote Viewing
Security Rooms
Retail Shops
Home Offices
Small Server Rooms
Network Cabinets
6 × IEC Output Connections
The 5E2200UI-EA provides:
6 × IEC C13 OUTPUTS
This makes it convenient to protect multiple compatible devices from a single UPS.
For example:
Outlet 1 → CCTV NVR
Outlet 2 → PoE Switch
Outlet 3 → Router
Outlet 4 → Security PC
Outlet 5 → Monitor
Outlet 6 → Network Equipment
However, six outlets do not mean six high-power devices can automatically be supported.
The combined power consumption must remain within the UPS’s rated capacity.
USB Communication Port
The built-in:
USB COMMUNICATION
allows a compatible computer to communicate with the UPS.
This can support functions such as:
UPS Status Monitoring
Power Event Monitoring
Battery Information
Automatic / Controlled Computer Shutdown
This is useful for unattended workstations and small IT systems where a prolonged power failure may occur outside office hours.
Cold Start Function
The UPS also supports cold start, allowing supported connected equipment to be powered from the UPS battery even when normal AC mains power is unavailable.
This can be useful in selected emergency or troubleshooting situations.
Actual usable runtime will depend on the battery state and connected load.
Battery Backup
The 5E2200UI-EA uses internal sealed lead-acid batteries.
Battery runtime is affected by:
Connected Wattage
Battery Age
Battery Condition
Ambient Temperature
Charging State
Number of Previous Discharges
A 100W load can operate substantially longer than a 700W or 1,000W load.
Therefore, for CCTV projects requiring a specific target such as:
15 Minutes
30 Minutes
1 Hour
the UPS should be sized using the actual system load and required runtime.
UPS Battery Replacement
UPS batteries are consumable components.
After several years of operation, users may notice:
Shorter Backup Runtime
Battery Alarm
UPS Immediately Shuts Down During Blackout
Battery Cannot Hold Charge
Battery Replacement Warning
Replacing batteries before complete failure is important for security systems because a UPS with deteriorated batteries may appear normal while mains electricity is present but provide little or no useful backup when a blackout occurs.
EATON 5E2200UI-EA for PC Protection
The UPS is also suitable for protecting desktop computers and workstations.
Without UPS:
BLACKOUT
↓
PC IMMEDIATELY OFF
↓
UNSAVED WORK MAY BE LOST
With UPS:
BLACKOUT
↓
EATON BATTERY BACKUP
↓
PC REMAINS POWERED
↓
SAVE + SAFE SHUTDOWN
This makes it useful for offices where unexpected shutdowns can disrupt daily operations.
5E2200UI-EA vs 5E1200UI-EA
| Feature | 5E1200UI-EA | 5E2200UI-EA |
|---|---|---|
| Capacity | 1200VA | 2200VA |
| Maximum Power | 660W | 1200W |
| Technology | Line-Interactive | Line-Interactive |
| AVR | Yes | Yes |
| USB | Yes | Yes |
| IEC Outputs | 6 | 6 |
| CCTV NVR | Yes | Yes |
| Larger CCTV Load | Limited | Better |
| Router / Switch | Yes | Yes |
| PC Workstation | Yes | Yes |
| Best Application | Small System | Medium Load / Multiple Devices |
For a CCTV system containing an NVR, PoE switch, multiple cameras and router, the 2200VA model provides substantially more power headroom.
Line-Interactive vs Online UPS
The EATON 5E2200UI-EA is a Line-Interactive UPS, making it cost-effective for general commercial and security-system applications.
For highly sensitive or mission-critical applications requiring continuous double-conversion power conditioning, consider an Online UPS such as selected Eaton 9SX or 9PX models.
| Application | 5E2200UI-EA |
|---|---|
| Desktop PC | Recommended |
| CCTV NVR/DVR | Recommended |
| Router | Recommended |
| Network Switch | Recommended |
| Small NAS | Suitable within load |
| PoE CCTV | Suitable after load calculation |
| Mission-Critical Server | Consider Online UPS |
| Data Centre | Use Enterprise Online UPS |
EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
1. 2200VA / 1200W Capacity
Provides substantially more capacity for CCTV, network and office equipment than smaller desktop UPS units.
2. Automatic Voltage Regulation
AVR manages certain voltage fluctuations without unnecessarily consuming battery capacity.
3. Battery Backup + Surge Protection
Helps protect critical electronics from both power interruption and electrical disturbances.
4. 6 IEC Outlets + USB
Supports multiple devices and computer-based UPS monitoring.
5. Excellent for CCTV & Networking
A practical solution for NVRs, DVRs, PoE switches, routers, PCs and security-system equipment.
Suitable Applications
The EATON 5E2200UI-EA is suitable for:
CCTV Systems
NVR / DVR
PoE Switches
IP Cameras
Internet Routers
Network Switches
Desktop PCs
Security Workstations
Small Office Networks
Retail POS Systems
Small NAS Systems
Access-Control Network Equipment
Video Intercom Network Equipment
Home Offices
Commercial Offices
EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
SGCCTV – Choicecycle CCTV Pte Ltd provides solutions covering EATON UPS, CCTV backup power, NVR/DVR UPS, network UPS, UPS battery replacement, UPS troubleshooting, UPS repair and security-system power protection.
Website: www.sgcctv.com.sg
Email: enquiry@choicecycle.com.sg
WhatsApp: +65 9853 4404
10 Frequently Asked Questions
1. What is the capacity of the EATON 5E2200UI-EA?
The 5E2200UI-EA is a 2200VA / 1200W Line-Interactive UPS, providing greater capacity than smaller 650VA, 850VA and 1200VA desktop models.
2. Is the EATON 5E2200UI-EA suitable for CCTV?
Yes. It can provide backup power for appropriately sized combinations of NVRs, DVRs, network switches, routers and PoE CCTV equipment.
3. Does the 5E2200UI-EA have AVR?
Yes. Its Automatic Voltage Regulation helps manage certain high and low incoming-voltage conditions without immediately switching to battery.
4. Does it provide surge protection?
Yes. The UPS provides electrical surge protection for connected equipment. Outdoor network and CCTV installations may additionally require dedicated Ethernet surge protection.
5. How many output sockets does it have?
The model provides 6 × IEC C13 outputs. The total connected load must remain within the UPS’s rated output capacity.
6. Can I connect a router and network switch?
Yes. Routers and network switches are typical UPS loads. Maintaining power to network infrastructure can help preserve CCTV remote access and Internet connectivity during short outages.
7. Can it support a PoE CCTV switch?
Yes, provided the switch itself plus the total PoE camera load and all other equipment remain within the UPS rating. Calculate the worst-case system wattage before selecting the UPS.
8. Does it have USB communication?
Yes. USB communication enables compatible computers and UPS-management software to monitor UPS status and support controlled shutdown.
9. How long will the 5E2200UI-EA run during a blackout?
Runtime depends on total connected wattage, battery condition, battery age and temperature. A specific runtime cannot be determined accurately without knowing the actual load.
10. Is it suitable for servers?
It can support suitable IT equipment within its power rating, but for mission-critical servers or sensitive infrastructure, an Eaton online double-conversion UPS should be considered.
EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
- EATON 5E2200UI-EA Singapore
- EATON 2200VA UPS Singapore
- 2200VA 1200W UPS
- EATON UPS Singapore
- CCTV UPS Singapore
- NVR UPS Backup
- DVR UPS Singapore
- PoE Switch UPS
- Router UPS Singapore
- PC UPS Singapore
- AVR UPS Singapore
- Surge Protection UPS
- Network UPS Singapore
- UPS Battery Replacement Singapore
- Security System UPS Singapore
#Eaton #EatonUPS #5E2200UI #2200VAUPS #UPS #UPSSingapore #PowerBackup #AVR #SurgeProtection #CCTVUPS #NVR #PoESwitch #NetworkUPS #SGCCTV #ChoicecycleCCTV
CHOICECYCLE CCTV offer the best EATON 5E2200UI EA 2200VA UPSoffers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
❓ Frequently Asked Questions (FAQ)
1. What devices can the EATON 5E2200UI EA 2200VA UPS support?
This UPS is suitable for CCTV systems, NVR/DVR, routers, switches, desktop PCs, and small servers, providing stable backup power and protection.
2. How long can the UPS provide backup power?
Backup time depends on load:
- Light load (router + modem): up to 60–90 minutes
- Medium load (CCTV + NVR): around 20–40 minutes
- Heavy load (PC systems): around 10–20 minutes
3. What is AVR and why is it important?
The UPS includes Automatic Voltage Regulation (AVR), which stabilizes voltage fluctuations without switching to battery, extending battery lifespan and protecting sensitive equipment.
4. Does this UPS protect against power surges and lightning?
Yes. The EATON 5E2200UI provides surge protection and spike suppression, safeguarding your devices from sudden voltage spikes and lightning-related damage.
5. How many devices can be connected to this UPS?
It comes with 6 output outlets, allowing multiple devices such as CCTV cameras, NVR, router, and PC to be connected simultaneously.
6. Is this UPS suitable for CCTV systems in Singapore?
Yes. It is widely used for CCTV security systems, ensuring continuous recording during power failure and preventing data loss.
7. Does the UPS have USB communication support?
Yes. It includes a USB port for monitoring and safe shutdown of connected computers using power management software.
8. How long does the battery last before replacement?
Typically, the internal battery lasts 2–3 years, depending on usage, environment, and frequency of power interruptions.
9. Can this UPS be used for home and office use?
Yes. It is ideal for both home users and small office environments, especially for protecting routers, PCs, and surveillance systems.
10. Do you provide UPS maintenance and battery replacement in Singapore?
Yes. We offer:
- UPS maintenance & servicing
- Battery replacement
- Troubleshooting & repair
- Load testing and system upgrade
EATON 5E2200UI EA 2200VA UPS offers surge protection AVR 6 outlets & USB port Ideal power backup for CCTV systems routers PC
Donec accumsan auctor iaculis. Sed suscipit arcu ligula, at egestas magna molestie a. Proin ac ex maximus, ultrices justo eget, sodales orci. Aliquam egestas libero ac turpis pharetra, in vehicula lacus scelerisque. Vestibulum ut sem laoreet, feugiat tellus at, hendrerit arcu..
Nunc lacus elit, faucibus ac laoreet sed, dapibus ac mi. Maecenas eu ante a elit tempus fermentum. Aliquam commodo tincidunt semper. Phasellus accumsan, justo ac mollis pharetra, ex dui pharetra nisl, a scelerisque ipsum nulla ac sem. Cras eu risus urna. Duis lorem sapien, congue eget nisl sit amet, rutrum faucibus elit.
Donec accumsan auctor iaculis. Sed suscipit arcu ligula, at egestas magna molestie a. Proin ac ex maximus, ultrices justo eget, sodales orci. Aliquam egestas libero ac turpis pharetra, in vehicula lacus scelerisque. Vestibulum ut sem laoreet, feugiat tellus at, hendrerit arcu.
Nunc lacus elit, faucibus ac laoreet sed, dapibus ac mi. Maecenas eu ante a elit tempus fermentum. Aliquam commodo tincidunt semper. Phasellus accumsan, justo ac mollis pharetra, ex dui pharetra nisl, a scelerisque ipsum nulla ac sem. Cras eu risus urna. Duis lorem sapien, congue eget nisl sit amet, rutrum faucibus elit.
