Explosion Proof PTZ Camera CZ610-A & CZ610-B NEW JJ

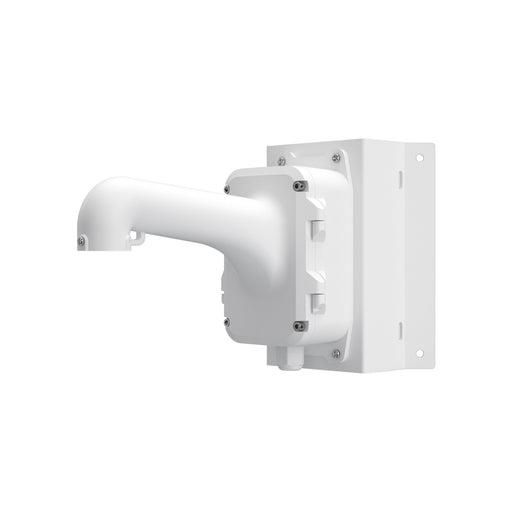

Explosion Proof PTZ Camera Junction Box Set – CZ610-A & CZ610-B

Industrial-Grade Mounting, Cable Protection & Installation Base for Hazardous-Area PTZ Surveillance Systems

4

1. Product Introduction

The Explosion Proof PTZ Camera Junction Box Set – CZ610-A & CZ610-B is a professional, heavy-duty mounting and cable management solution engineered to support explosion-proof and industrial PTZ CCTV camera installations. Supplied as one complete product, this set includes two junction box sizes to accommodate a wide range of PTZ camera bases, cable volumes, and installation conditions typically encountered in hazardous, high-risk, and industrial environments.

Explosion-proof PTZ cameras are often installed in locations where safety, stability, and reliability are critical. While the camera itself is designed to withstand extreme conditions, the mounting base and cable termination point are equally important. Poor cable management or weak mounting can compromise system integrity, cause downtime, or increase maintenance risk.

This junction box set is designed to solve these challenges by providing a secure enclosure for cable connections, a solid mechanical mounting interface, and installation flexibility across both indoor and outdoor hazardous locations.

2. Why a Dedicated Junction Box Is Critical for Explosion Proof PTZ Cameras

Explosion-proof PTZ cameras are significantly heavier and more complex than standard CCTV cameras. They typically include:

• High-power motors for pan, tilt, and zoom

• Multiple internal control boards

• Power, network, and sometimes alarm or control cables

• Continuous 24/7 movement

Without a proper junction box:

• Cables are exposed to moisture, dust, and vibration

• Connectors experience strain from camera movement

• Installations look unprofessional and unsafe

• Long-term reliability is reduced

The CZ610-A & CZ610-B Junction Box Set addresses these issues by acting as a protected transition point between the camera and the building infrastructure.

3. One Product, Two Junction Boxes – Complete Installation Coverage

This product is intentionally supplied as a combined set rather than a single junction box. Industrial and explosion-proof PTZ camera installations vary greatly depending on:

• Camera size and base diameter

• Cable thickness and quantity

• Wall or ceiling structure

• Indoor vs outdoor exposure

By including both CZ610-A and CZ610-B, installers and project managers gain maximum flexibility without needing to source additional accessories mid-project.

What’s Included

• CZ610-A Junction Box (Compact Type)

• CZ610-B Junction Box (Extended Capacity Type)

Both are marketed and supplied as one product set.

4. CZ610-A – Compact Junction Box for Controlled Installations

The CZ610-A is designed for situations where space is limited or where the PTZ camera base and cable volume are relatively compact.

Typical Use Cases

• Smaller explosion-proof PTZ cameras

• Indoor hazardous zones

• Sheltered industrial areas

• Wall or ceiling mounts with limited clearance

Key Advantages

• Compact footprint

• Clean, low-profile appearance

• Efficient cable organization

• Strong mechanical support

CZ610-A is often selected for indoor industrial facilities, control rooms, or partially protected environments where exposure to weather is limited but mechanical strength is still required.

5. CZ610-B – Large Junction Box for Heavy-Duty Installations

The CZ610-B is built for larger, heavier PTZ cameras and environments that require extra internal space for cable routing and strain relief.

Typical Use Cases

• Large explosion-proof PTZ cameras

• Outdoor hazardous areas

• Oil & gas sites, refineries, ports

• Installations with thick armored or multiple cables

Key Advantages

• Larger internal volume

• Easier cable routing and termination

• Better separation of power and data cables

• Ideal for fully exposed outdoor installations

CZ610-B is the preferred choice when installation robustness and serviceability are top priorities.

6. Designed for Hazardous & Industrial Environments

Explosion-proof PTZ camera systems are commonly deployed in environments such as:

• Oil and gas refineries

• Petrochemical plants

• Chemical processing facilities

• Power generation plants

• Heavy manufacturing sites

• Ports, docks, and offshore platforms

These locations demand accessories that can withstand:

• High humidity

• Dust and particulates

• Vibration and mechanical stress

• Continuous operation

The CZ610-A & CZ610-B Junction Box Set is engineered to support these conditions by providing stable mounting and protected cable termination, reducing the risk of failure caused by environmental exposure.

7. Build Quality & Materials

Both junction boxes are manufactured using industrial-grade materials selected for strength, durability, and long-term performance.

Material Characteristics

• High mechanical strength

• Resistance to corrosion

• Suitable for humid and industrial climates

• Stable under continuous camera movement

This construction ensures that the junction boxes do not deform, crack, or loosen over time, even when supporting heavy PTZ cameras with constant motion.

8. Cable Protection & Management

Cable management is one of the most critical aspects of PTZ camera installation. Improper cable routing can lead to:

• Signal loss

• Power instability

• Connector damage

• Increased maintenance

The junction box set provides:

• Enclosed space for connectors

• Reduced bending and strain on cables

• Protection from dust and moisture

• Organized internal routing

By housing all connectors inside the junction box, the system remains neat, secure, and serviceable.

9. Mechanical Stability for Continuous PTZ Movement

PTZ cameras constantly move during operation. This movement places stress on:

• Mounting surfaces

• Fasteners

• Cable entry points

The CZ610-A & CZ610-B junction boxes act as a load-spreading base, improving:

• Camera stability

• Mounting strength

• Long-term alignment accuracy

This is especially important for explosion-proof PTZ cameras, which are heavier than standard models.

10. Installation Process (No Configuration Required)

This product is purely mechanical and does not require any software or configuration.

Typical Installation Steps

1. Secure the junction box to the wall or ceiling

2. Route power, network, and control cables into the box

3. Terminate and organize all connectors internally

4. Mount the PTZ camera onto the junction box

5. Seal and tighten all fasteners

This process helps installers complete jobs faster while maintaining a professional finish.

11. Indoor & Outdoor Installation Flexibility

Because the set includes two box sizes, it can be used across:

• Indoor hazardous zones

• Outdoor exposed locations

• Wall-mounted installations

• Ceiling-mounted installations

This flexibility makes the product suitable for large projects with mixed environments.

12. Compatibility With PTZ Camera Systems

The junction box set is compatible with:

• Explosion-proof PTZ cameras

• Industrial PTZ cameras

• IP-based PTZ systems

• PoE or external power PTZ cameras

• Hybrid CCTV systems

It is commonly used alongside cameras from major industrial CCTV manufacturers.

13. Professional Appearance & Project Standards

Beyond function, appearance matters in industrial projects. A clean installation:

• Improves safety perception

• Meets project documentation standards

• Reduces inspection issues

• Increases client confidence

Using proper junction boxes instead of exposed cables demonstrates professional workmanship.

14. Long Service Life & Reduced Maintenance

When installed correctly, the CZ610-A & CZ610-B junction boxes provide:

• Long operational lifespan

• Reduced cable failures

• Lower maintenance frequency

• Improved system uptime

This protects the investment in high-value explosion-proof PTZ cameras.

15. Cost Efficiency for Large Projects

Supplying both junction box sizes in one product:

• Reduces procurement complexity

• Minimizes installation delays

• Avoids incorrect box sizing

• Improves inventory efficiency

This is especially beneficial for multi-camera industrial projects.

16. Ideal Buyers & Users

This product is ideal for:

• CCTV system integrators

• Industrial security contractors

• Oil & gas project installers

• Factory and plant operators

• Government and infrastructure projects

19. Explosion-Proof System Design Considerations (Installer Insight)

When designing an explosion-proof PTZ surveillance system, many projects focus heavily on the camera’s certification and overlook the supporting mechanical infrastructure. In real-world industrial environments, system failure is more commonly caused by poor mounting, exposed connectors, or cable fatigue than by camera electronics.

The CZ610-A & CZ610-B Junction Box Set plays a critical role in:

• Creating a controlled transition point between hazardous and non-hazardous cabling

• Reducing micro-movement stress caused by PTZ rotation

• Preventing cable pull-out under vibration or wind load

• Supporting structured cable routing inside hazardous facilities

In explosion-risk environments, mechanical stability and cable integrity are just as important as camera housing strength.

20. Role of Junction Boxes in Hazardous Area Risk Mitigation

While this product itself is not a certification device, it supports risk mitigation strategies commonly applied in hazardous-area surveillance systems by:

• Minimizing exposed electrical connections

• Reducing ingress points for dust and moisture

• Allowing proper sealing and strain relief

• Supporting tidy, inspectable installations

A well-installed junction box reduces the likelihood of:

• Loose connectors

• Water ingress into camera bases

• Accidental cable damage during maintenance

• Premature PTZ motor or board failure

This makes the junction box set a preventive infrastructure component, not just a mounting accessory.

21. Typical Cabling Scenarios Supported

Explosion-proof PTZ cameras often use more complex cabling than standard CCTV systems. The CZ610-A & CZ610-B junction boxes provide internal space to support:

• Power + Ethernet (non-PoE systems)

• PoE with surge protection devices

• Ethernet + alarm I/O wiring

• Ethernet + fiber media converter tails

• Thick outdoor-rated or armored cables

The CZ610-B model is particularly valuable where:

• Cable bend radius must be respected

• Multiple glands or conduit entries are required

• Separation between power and data cables is preferred

22. Indoor vs Outdoor Industrial Deployment Strategy

Indoor Hazardous Areas

• CZ610-A commonly used

• Cleaner appearance

• Reduced exposure to direct rain or UV

• Suitable for ceilings, beams, and steel structures

Outdoor / Fully Exposed Areas

• CZ610-B strongly recommended

• Better cable working space

• Improved strain relief

• Easier future servicing

By including both models in one product, installers can adapt on-site without redesigning the mounting plan.

23. Maintenance & Serviceability Advantages

Industrial CCTV systems must be serviceable without unnecessary downtime. The junction box design allows:

• Quick access to connectors

• Clean separation of camera and building cabling

• Easier troubleshooting without camera removal

• Faster camera replacement if required

In long-term operations, this significantly reduces:

• Maintenance man-hours

• System downtime

• Risk during servicing in hazardous locations

24. Common Installation Mistakes This Product Helps Avoid

This junction box set helps prevent frequent installation issues such as:

• Directly terminating cables inside camera housing

• Leaving RJ45 connectors exposed

• Excessive cable bending at camera entry points

• Mounting heavy PTZ cameras on weak surfaces

• Using undersized junction boxes

Avoiding these mistakes improves system reliability, safety perception, and project acceptance.

25. Project Documentation & Inspection Readiness

Many industrial projects require:

• Installation photographs

• As-built documentation

• Safety inspections

• Client or consultant sign-off

A clean junction box installation:

• Looks professional in reports

• Simplifies inspection approval

• Demonstrates proper workmanship

• Aligns with industrial installation standards

This can directly impact handover acceptance and payment milestones.

26. Packaging & Logistics Advantages

Supplying CZ610-A and CZ610-B as one product set offers logistical benefits:

• Fewer SKUs to manage

• Reduced risk of incorrect ordering

• Simplified project BOM

• Faster site deployment

For system integrators and contractors, this improves inventory control and installation efficiency.

27. Scalability for Multi-Camera Projects

In large facilities, PTZ camera sizes and locations often vary. This junction box set supports:

• Mixed camera models

• Different mounting heights

• Varying cable routes

• Phased project rollouts

One standardized junction box set simplifies training, planning, and repeat installations.

28. Environmental & Climate Suitability (Singapore & Region)

Designed for use in:

• High humidity environments

• Industrial indoor heat

• Outdoor tropical conditions

• Long-term continuous operation

The material and structure support stable performance in Southeast Asia climates, making it suitable for Singapore-based and regional projects.

29. Frequently Asked Questions (FAQ)

Q: Is this an explosion-proof certified product?
A: This is a junction box and mounting accessory designed to support explosion-proof PTZ camera installations. Certification depends on the camera and system design.

Q: Can I use only one junction box from the set?
A: Yes. The product is supplied as a set to give installers flexibility. You may use either CZ610-A or CZ610-B depending on site needs.

Q: Is this suitable for non-explosion-proof PTZ cameras?
A: Yes. It can also be used for industrial and heavy-duty PTZ cameras in non-hazardous areas.

Q: Does this require configuration or software?
A: No. This is a mechanical mounting and cable management solution only.

30. Why This Product Adds Value to High-Risk CCTV Projects

Explosion-proof PTZ cameras represent a significant investment. Protecting that investment requires attention to every supporting component.

This junction box set:

• Improves installation quality

• Protects cabling and connectors

• Reduces maintenance risk

• Enhances professional presentation

• Supports long-term system stability

It is a small cost component with a high impact on system reliability.

32. System Reliability in Continuous 24/7 PTZ Operation

Explosion-proof PTZ cameras are rarely deployed for short-term or intermittent use. In most industrial and hazardous environments, they operate 24 hours a day, 7 days a week, often under harsh physical conditions. Continuous PTZ movement places cumulative mechanical stress on:

• Camera mounting points

• Fasteners and anchors

• Cable entry points

• Power and data connectors

The CZ610-A & CZ610-B Junction Box Set provides a stable mechanical interface that helps absorb and distribute these stresses. By anchoring the camera firmly and isolating cable connections within a protected enclosure, the junction box reduces long-term wear that can otherwise lead to signal dropouts, intermittent power issues, or premature component failure.

Over years of operation, this stability directly contributes to higher system uptime and lower total cost of ownership.

33. Vibration, Wind Load & Structural Considerations

In outdoor and elevated installations—such as poles, towers, perimeter walls, or steel structures—explosion-proof PTZ cameras are exposed to:

• Wind-induced vibration

• Structural resonance

• Equipment vibration from nearby machinery

The junction box acts as a buffer layer between the camera and the mounting surface, helping to:

• Improve load distribution

• Reduce micro-movements at cable entry points

• Maintain consistent camera alignment

The CZ610-B, in particular, is suitable for locations where wind load and vibration are constant factors, such as coastal facilities, ports, offshore structures, and open industrial yards.

34. Cable Entry, Conduit & Gland Integration

Industrial CCTV installations often require the use of:

• Metal conduits

• Flexible armored conduits

• Cable glands

• Trunking systems

The internal space provided by the junction boxes allows installers to:

• Terminate conduits cleanly

• Maintain proper bend radius

• Secure cable glands without crowding

• Separate different cable types

This is especially important in explosion-risk environments where tidy cable routing and mechanical protection are part of good engineering practice.

35. Supporting Surge Protection & Inline Accessories

In many industrial CCTV designs, additional inline accessories may be installed close to the camera, such as:

• Ethernet surge protectors

• Power protection modules

• Media converters (short tails)

The junction box provides a safe enclosure where such components can be housed neatly, avoiding exposure and reducing the need for external housings. This simplifies system layout and keeps the installation visually and mechanically organized.

36. Adaptability Across Different Project Phases

Large industrial and infrastructure projects are often deployed in phases:

• Phase 1: Core monitoring areas

• Phase 2: Perimeter expansion

• Phase 3: Additional coverage or upgrades

By standardizing on a single junction box set, contractors can:

• Maintain consistent installation quality

• Reuse installation practices

• Simplify future expansions

• Reduce retraining requirements

The CZ610-A & CZ610-B set supports both initial deployment and future scaling without redesign.

37. Alignment With Professional Installation Practices

Experienced system integrators recognize that professional CCTV installation is defined by details, not just equipment selection. Proper use of junction boxes demonstrates:

• Structured installation methodology

• Attention to safety and durability

• Compliance with internal engineering standards

• Respect for client and site requirements

Using correct mounting and cable management accessories reflects positively during audits, inspections, and handovers.

38. Comparison to Direct-Mount Installations

Direct Camera Mounting (Without Junction Box)

• Exposed connectors

• Limited cable strain relief

• Poor serviceability

• Increased failure risk

With CZ610-A & CZ610-B Junction Box Set

• Protected cable termination

• Organized internal layout

• Easier servicing

• Improved mechanical stability

This comparison clearly shows why junction boxes are considered essential infrastructure, not optional accessories, in explosion-proof PTZ systems.

39. Safety Perception & Client Confidence

In hazardous-area projects, client confidence is influenced not only by technical specifications but also by visual and practical safety cues. A neat, enclosed installation:

• Appears safer and more deliberate

• Reduces perceived risk

• Demonstrates contractor professionalism

• Builds trust with operators and safety officers

A properly installed junction box sends a strong signal that the system was designed and executed with care.

40. Training & Workforce Efficiency

Standardizing on this junction box set allows companies to:

• Train installers on one solution

• Reduce on-site decision-making

• Minimize installation errors

• Improve consistency across teams

This is particularly valuable for organizations managing multiple crews or subcontractors across different sites.

41. Long-Term Asset Protection Strategy

Explosion-proof PTZ cameras are capital-intensive assets. Protecting them requires a holistic approach that includes:

• Proper mounting

• Cable protection

• Environmental shielding

• Ease of maintenance

The junction box set contributes directly to this strategy by reducing avoidable risks that can shorten equipment lifespan.

42. Sustainability & Reduced Waste

By extending the service life of cameras and cabling, the junction box set indirectly supports:

• Reduced electronic waste

• Fewer replacement cycles

• More sustainable system operation

For organizations with environmental or sustainability objectives, durable infrastructure components play a meaningful role.

43. Tender & Specification Language Support

This product description can be easily adapted into:

• Tender specifications

• Method statements

• Technical proposals

• Project documentation

The wording supports professional engineering language without overstating certification claims, making it suitable for regulated and audited projects.

44. Summary of Value Proposition

The Explosion Proof PTZ Camera Junction Box Set – CZ610-A & CZ610-B delivers value by:

• Supporting safe and professional installation

• Improving system reliability

• Protecting cables and connectors

• Enhancing serviceability

• Reducing long-term costs

It is a critical supporting component for serious industrial surveillance systems.

45. Final Purchase Recommendation

For system integrators, contractors, and project owners working in hazardous or industrial environments, selecting the right mounting and cable management solution is just as important as choosing the camera itself.

This junction box set provides the foundation for a reliable, maintainable, and professional explosion-proof PTZ camera installation.

Buy Explosion Proof PTZ Camera Junction Box Set in Singapore – Choicecycle (SGCCTV)

For local stock, trusted supply, and professional advice, purchase from Choicecycle (SGCCTV Singapore).

📍 Choicecycle (SGCCTV Singapore)

• WhatsApp: +65 9853 4404

• Email: enquiry@choicecycle.com.sg

• Website: https://sgcctv.com.sg

• Store: Sim Lim Square #02-81, Singapore

• Operating Hours: 11:00 AM – 8:00 PM
