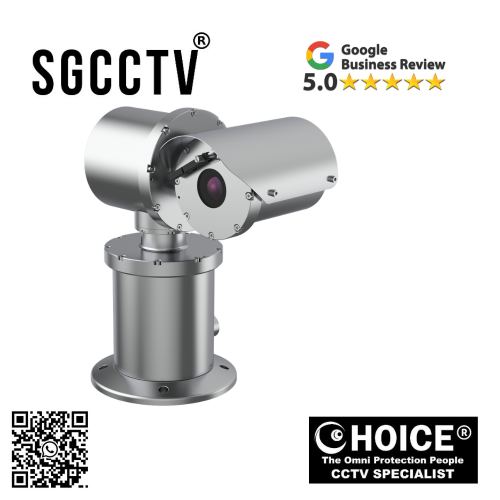

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Hanwha Wisenet TNU-6324E – 2MP Explosion-Proof PTZ Camera Built for Hazardous Industrial Security

The Hanwha Vision TNU-6324E is a specialized 2MP explosion-proof PTZ surveillance camera engineered for some of the world’s harshest and most dangerous operating environments. Designed with industrial-grade Stainless Steel 316L housing, certified explosion-proof standards, and advanced 360° endless pan with 180° tilt capability, this camera is purpose-built for mission-critical security in oil refineries, offshore rigs, chemical plants, marine facilities, gas stations, mining zones, and hazardous manufacturing environments. Hanwha Vision positions the TNU-6324E as a high-durability solution where conventional CCTV systems simply cannot survive. Its combination of corrosion resistance, impact protection, weatherproofing, and explosive atmosphere certifications makes it an elite surveillance platform for high-risk sectors.

Unlike standard surveillance cameras, the TNU-6324E is built not only to monitor but to safely operate in volatile zones containing combustible gases, vapors, dust, or flammable particles. With IECEx, ATEX, KCs, and CE certifications, this model meets global hazardous-area standards while delivering Full HD 1920 x 1080 resolution, powerful 32x optical zoom, and superior operational flexibility. Its integrated wiper system, IK10 vandal resistance, and IP67 weatherproof rating ensure dependable performance in corrosive rain, storms, salt-heavy coastal air, and physically aggressive industrial conditions.

Industrial-Grade Explosion Protection That Goes Beyond Basic Surveillance

The Hanwha Wisenet TNU-6324E stands apart because of its explosion-proof enclosure. In hazardous sectors, sparks or excessive heat from electronics can trigger catastrophic incidents. Hanwha addresses this by designing the camera with sealed Stainless Steel 316L housing capable of containing internal ignition sources while preventing hazardous gas or dust interaction. This makes it suitable for environments such as petrochemical storage tanks, LNG plants, aviation fuel depots, and explosive manufacturing zones.

Stainless Steel 316L is especially critical because it offers superior corrosion resistance compared to ordinary steel or aluminum. In marine ports, offshore rigs, and chemical facilities where saltwater, acid exposure, or harsh chemicals are common, 316L housing extends the camera’s lifespan significantly. This robust material also improves structural integrity against external impacts and environmental degradation. For operators managing critical infrastructure, this means lower maintenance costs, reduced replacement frequency, and higher operational confidence.

Full PTZ Coverage with 360° Endless Pan and 180° Tilt

One of the defining strengths of the TNU-6324E is its 360° endless pan combined with a full 180° tilt range. Traditional PTZ cameras may have movement limitations, but this model can continuously rotate and monitor wide industrial spaces without blind spots. This is essential in large-scale facilities like refineries, shipyards, power plants, and perimeter security zones.

Its PTZ system includes:

• 360° endless pan
• 180° tilt (-90° to +90°)
• 300 programmable presets
• Swing mode
• Group mode
• Tour mode
• Auto-run schedules

This flexibility allows security teams to automate patrol routes, monitor pipelines, oversee loading bays, inspect hazardous storage tanks, and secure restricted access zones without constant manual intervention.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Crystal-Clear 2MP Imaging with Powerful 32x Optical Zoom

While 2MP may sound modest in an era of 4K cameras, Hanwha’s engineering focuses on optimized industrial visibility rather than consumer-grade pixel marketing. The TNU-6324E delivers:

• 1920 x 1080 Full HD resolution
• Up to 60fps
• 4.44mm–142.6mm focal range
• 32x optical zoom
• Day & Night ICR
• 120dB WDR
• Defog technology
• Digital Image Stabilization

This means operators can monitor expansive industrial landscapes while zooming into distant valves, fences, worker zones, or transport vehicles without sacrificing detail. WDR is especially valuable for industrial spaces where bright sunlight, flames, or reflective metallic surfaces create uneven lighting conditions.

Advanced Analytics for Proactive Security

Hanwha integrates intelligent analytics that elevate the TNU-6324E beyond passive recording. Features include:

• Motion detection
• Tampering alerts
• Fog detection
• Face detection
• Virtual line crossing
• Intrusion zones
• Enter/Exit detection
• Appear/Disappear alerts
• Audio detection

These functions are critical for industrial automation and proactive incident prevention. For example:

• Detecting unauthorized personnel entering explosive zones
• Monitoring perimeter breaches
• Identifying blocked visual conditions
• Triggering alerts when operational protocols are violated

Built for Harsh Weather and Physical Abuse

The TNU-6324E is IP67 and IK10 rated, ensuring protection against:

• Dust ingress
• Heavy rain
• High-pressure water
• Physical vandalism
• Mechanical shocks

Its built-in wiper improves lens clarity during rain, snow, or dusty conditions, which is particularly important in outdoor industrial applications. This feature reduces visual downtime and supports uninterrupted monitoring.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Ideal Use Cases for Hanwha TNU-6324E

This camera is not designed for home or small office use—it is a premium enterprise-grade industrial solution best suited for:

• Oil & gas refineries
• Petrochemical plants
• LNG terminals
• Offshore drilling rigs
• Marine ports
• Chemical storage
• Mining facilities
• Aviation fuel depots
• Hazardous logistics hubs
• Military explosive zones

Why Security Integrators Choose Hanwha Wisenet TNU-6324E

Security professionals and industrial project managers often prioritize:
Safety compliance, corrosion resistance, PTZ flexibility, long-distance zoom, and low maintenance.

The TNU-6324E delivers strongly in all five areas:

• Global explosion certifications
• Stainless 316L body
• Full PTZ automation
• 32x optical zoom
• Advanced analytics
• Industrial-grade reliability

Common Installation Considerations

Due to its explosion-proof design and industrial certifications, installation typically requires:

• Hazardous zone compliance checks
• Certified mounting brackets
• Explosion-safe cabling
• Professional grounding
• Industrial power planning
• Network integration with enterprise VMS

This is generally a professional integrator deployment rather than DIY.

Competitive Advantages Over Standard PTZ Cameras

Compared with standard PTZ units:

• Safer in hazardous zones
• Longer lifespan in corrosive areas
• Better compliance for industrial tenders
• Lower failure risk
• More resilient to physical damage

Final Verdict

The Hanwha Wisenet TNU-6324E is a specialist surveillance powerhouse for industrial operators who cannot compromise on safety, reliability, or regulatory compliance. It is not about consumer aesthetics—it is about operational survival in environments where a regular camera could fail or become dangerous. For organizations protecting hazardous assets, human life, and critical infrastructure, this model represents a strategic long-term investment.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

How to Install & Set Up Hanwha Wisenet TNU-6324E Explosion-Proof PTZ Camera (Industrial Guide)

Installing the Hanwha Wisenet TNU-6324E is very different from installing a normal CCTV camera. Because this is an explosion-proof, hazardous-area PTZ surveillance system, installation must prioritize safety compliance, hazardous zone certification, proper grounding, corrosion protection, and industrial network security.

This guide covers the full practical workflow for site survey → mounting → wiring → network setup → PTZ configuration → security hardening → testing.

Before You Begin: Critical Safety Requirements

Important:

The TNU-6324E is designed for:

• Oil & Gas Facilities
• Petrochemical Plants
• LNG Stations
• Offshore Marine Platforms
• Chemical Processing
• Dust/Explosive Industrial Zones

You MUST verify:

1. Hazardous Zone Classification

Check whether your area is:

• Zone 1
• Zone 2
• Class I Division 1
• Class I Division 2

This determines cable glands, conduit type, and mounting accessories.

2. Certified Installer Requirement

Explosion-proof devices often require:

• Licensed electrician
• ATEX / IECEx compliance installer
• Industrial safety supervisor

3. Power Requirements

Confirm:

• Voltage input
• Surge protection
• UPS backup
• Grounding resistance

Step 1: Site Survey & Planning

Choose Installation Position Carefully

Ideal Placement:

• Tank farms
• Refinery perimeters
• Loading bays
• Offshore deck monitoring
• Hazardous gate checkpoints
• Gas compressor stations

Avoid:

• Direct steam outlets
• Vibrating machinery without anti-vibration mounts
• Extreme heat exhaust vents
• Blind corners
• Unshielded lightning-prone poles

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Step 2: Check Package Contents

Typical package includes:

• Hanwha TNU-6324E Camera
• Explosion-proof housing assembly
• Sunshield
• Wiper
• Mounting bracket
• Safety instructions
• Waterproof connectors
• Setup manual

Recommended Extra Tools:

• Stainless steel mounting bolts
• Torque wrench
• Industrial conduit
• Explosion-proof junction box
• PoE injector / industrial switch
• Laptop
• Network tester
• Grounding cable
• Surge protector

Step 3: Mounting the Camera

Wall Mount Installation

Best for:

• Perimeter fences
• Facility walls
• Marine structures

Steps:

1.

Mark drilling points using mounting template.

2.

Drill using industrial masonry or steel-rated drill.

3.

Install anchor bolts (316 stainless recommended).

4.

Secure bracket firmly.

5.

Attach camera body to bracket.

6.

Tighten to manufacturer torque specification.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Pole Mount Installation

Best for:

• Open industrial yards
• Port surveillance
• Pipeline corridors

Use:

• Explosion-proof pole clamp
• Anti-corrosion stainless steel straps

Step 4: Cable Routing

Critical:

Never use ordinary cable glands in hazardous zones.

Required:

• Explosion-proof certified cable glands
• Sealed conduit
• Industrial Cat5e/Cat6 shielded cable
• Fiber where EMI is high

Cable Types:

Network:

• Shielded Cat6
• Fiber optic for long range

Power:

• Dedicated industrial-grade supply

Ground:

• Separate earth grounding

Step 5: Grounding & Surge Protection

Essential for explosion-proof deployment:

Connect:

• Camera housing to earth
• Mounting pole to earth
• Network surge protector
• Power surge suppressor

Ground resistance:

Preferably below 5 ohms.

Why?

Prevents:

• Lightning damage
• Static ignition
• PTZ motor failure
• Network board burnout

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Step 6: Connect to Network

Option A: PoE (if supported by deployment design)

Connect to industrial PoE switch.

Option B: External power

Connect through certified power source.

Recommended:

Use industrial managed switch with:

• VLAN
• Surge suppression
• Temperature hardening
• Redundant uplinks

Step 7: Initial Camera Access

Default Setup:

1.

Connect laptop to same network.

2.

Use Hanwha Device Manager / Wisenet Device Manager.

3.

Scan for device IP.

4.

Set:

• Static IP
• Subnet mask
• Gateway
• DNS

Best Practice:

Avoid DHCP for industrial deployments.

Example:

• IP: 192.168.1.200
• Subnet: 255.255.255.0
• Gateway: 192.168.1.1

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Step 8: First Login & Security Hardening

Immediately:

Change default password.

Strong Password:

• 12–16 characters
• Uppercase
• Lowercase
• Numbers
• Symbols

Disable:

• Unused ports
• UPnP
• Default ONVIF credentials
• Anonymous login

Enable:

• HTTPS
• User role separation
• IP filtering
• Audit logs

Step 9: Configure PTZ

Key Setup:

Pan:

360° endless

Tilt:

180°

Presets:

Set critical views:

• Gate
• Valve area
• Tank
• Emergency exit
• Loading zone

Patrol Modes:

Tour:

Sequential patrol

Auto Scan:

Continuous route

Group:

Event-triggered monitoring

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Step 10: Video Settings

Recommended:

Resolution:

1920×1080

FPS:

30fps standard
60fps for high-motion areas

Compression:

H.265 for storage efficiency

WDR:

Enable in bright flame or reflective metal zones

Defog:

Enable in smoke or marine fog zones

Step 11: Analytics Configuration

Set:

Intrusion Zones:

Restricted hazardous areas

Line Crossing:

Perimeter

Tamper Detection:

Unauthorized obstruction

Audio Detection:

Explosion-prone sound monitoring

Step 12: Recording Setup

Connect to:

• Hanwha NVR
• VMS
• Milestone
• Genetec
• ONVIF-compatible platforms

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Recording Mode:

Critical Sites:

24/7 continuous + event backup

Lower-risk:

Motion + analytics

Step 13: Remote Monitoring

Use:

• Hanwha Wisenet WAVE
• Secure VPN
• Dedicated control room

Avoid:

Direct port forwarding unless cybersecurity hardened.

Step 14: Test the System

Verify:

Mechanical:

• Pan
• Tilt
• Zoom
• Wiper

Image:

• Day/Night
• IR
• Defog
• WDR

Security:

• Login
• Encryption
• Alerts

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Common Installation Mistakes to Avoid

Mistake:

Using standard junction box

Result:

Explosion risk

Mistake:

Poor grounding

Result:

Lightning/PTZ failure

Mistake:

DHCP use

Result:

IP conflicts

Mistake:

Weak password

Result:

Cybersecurity breach

Maintenance Tips

Monthly:

• Inspect seals
• Check corrosion
• Test wiper
• Verify PTZ movement
• Confirm analytics

Quarterly:

• Firmware update
• Network audit
• Ground test
• Clean lens

Final Pro Installation Advice

For high-risk industrial sites, pair the TNU-6324E with:

• Explosion-proof junction boxes
• Industrial PoE switches
• Fiber backbone
• UPS backup
• Cybersecure VMS

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Quick Setup Checklist

Physical:

• Mount securely
• Certified glands
• Grounded
• Surge protected

Network:

• Static IP
• Secure password
• HTTPS
• VLAN

Video:

• H.265
• Presets
• Analytics
• Recording

Bottom Line

The Hanwha Wisenet TNU-6324E is a premium hazardous-area surveillance system. Proper installation is not just about functionality—it is about safety, compliance, and long-term reliability. A professional industrial deployment ensures maximum performance while protecting both infrastructure and human life.

Hanwha Wisenet TNU-6324E Warranty Guide (What You Need to Know)

The Hanwha Vision TNU-6324E generally falls under Hanwha Vision’s global 5-year limited warranty program for IP cameras and NVRs, which Hanwha expanded globally as a standard policy. Hanwha states its 5-year warranty applies to eligible network camera products, though exact coverage can vary by region, distributor channel, and product category.

Standard Warranty Coverage

Typical Coverage Includes:

1. Hardware Defects

• Manufacturing defects
• Internal electronics failure
• PCB faults
• Factory component issues
• Non-user-caused camera malfunction

2. Repair or Replacement

Hanwha’s standard policy is usually:

• Repair defective product
• Replace with equivalent unit
• Distributor-managed RMA process

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Important Explosion-Proof Product Considerations

Because the TNU-6324E is an industrial explosion-proof camera, some components may have separate warranty terms depending on:

• Moving parts (PTZ motors / slip rings)
• Wiper system
• Consumable components
• Accessories / mounts / housing-specific components

Hanwha’s policy notes that moving or consumable parts can have shorter coverage depending on usage conditions, especially under continuous PTZ operation.

What May Void the Warranty

Common Warranty Exclusions:

Installation Errors:

• Improper hazardous-zone installation
• Non-certified cable glands
• Incorrect grounding
• Voltage damage
• Water ingress from poor sealing

Physical / Environmental Damage:

• Lightning strikes
• Corrosion from unauthorized modifications
• Fire
• Chemical abuse
• Mechanical impact beyond IK10 spec

Unauthorized Service:

• Opening sealed explosion-proof enclosure
• Third-party repair
• Internal modifications
• Non-approved accessories

Special Note for Hazardous Area Equipment

For explosion-proof systems:

VERY IMPORTANT:

Repairs may require:

• Authorized Hanwha service
• Certified hazardous equipment specialist
• Approved distributor RMA

The manual emphasizes that these units should not be dismantled or modified outside approved service channels due to safety certification requirements.

Regional Warranty Differences

Global:

• Commonly 5 years for qualifying IP products

Some Markets:

• Certain accessories or housings may differ
• Distributor invoice may determine warranty start date
• Serial number validation often required

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Best Practices to Protect Your Warranty

Keep:

• Invoice / purchase receipt
• Serial number
• Installation documentation
• Maintenance logs
• Certified installer records

Recommended Maintenance for Warranty Support

Monthly:

• Seal inspection
• Ground continuity check
• Lens/wiper check
• PTZ functionality

Quarterly:

• Firmware updates
• Corrosion inspection
• Surge protection review

Warranty Claim Process (Typical)

Step 1:

Contact authorized distributor or seller

Step 2:

Provide:

• Model number
• Serial number
• Proof of purchase
• Fault description

Step 3:

RMA / service evaluation

Step 4:

Repair or replacement decision

Pro Tip for Singapore Industrial Buyers

For buyers using TNU-6324E in:

• Petrochemical
• Marine
• Refineries
• Ports

Always buy through an authorized Hanwha partner to avoid grey-market units that may not qualify for official warranty support.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Bottom Line

Expected Warranty:

Up to 5-Year Limited Warranty (subject to regional and product-specific terms)

Best Advice:

For industrial-grade products like the TNU-6324E, warranty value depends heavily on:
Authorized purchase + certified installation + proper maintenance

Because this is a premium explosion-proof surveillance asset, correct deployment protects both safety certification and long-term support.

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Quick Warranty Summary

Likely Covered:

• Factory defects
• Internal hardware faults
• Manufacturer issues

May Not Be Covered:

• Installation mistakes
• Environmental abuse
• Unauthorized repair
• Consumables / some moving parts

Hanwha Wisenet TNU-6324E 2MP Explosion proof camera 180° Tilt Range IP67, IK10 Rated Max. 2MP (1920 x 1080) resolution Stainless 316L NEW

Choicecycle (SGCCTV Singapore)
Website: https://sgcctv.com.sg
WhatsApp: +65 9853 4404
Email: enquiry@choicecycle.com.sg
Store: Sim Lim Square #02-81, Singapore
Operating Hours: 11 AM – 8 PM
