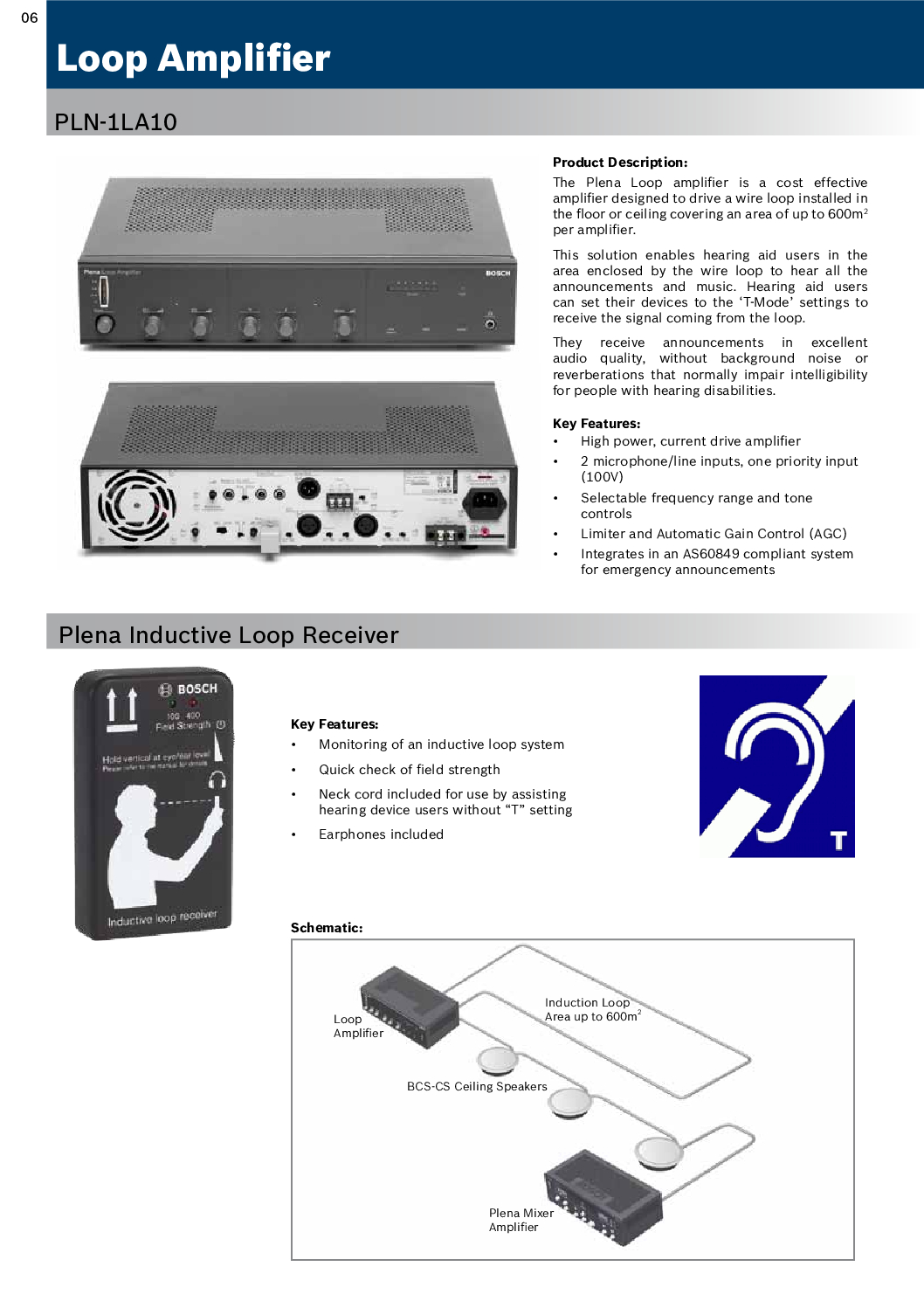

The Bosch PLN-1LA10 Plena Loop Amplifier (Product No.: F.01U.012.822) is a specialized, current-driven induction loop amplifier designed to provide assistive listening for hearing-aid users. In compliance with EN 60118-4, this 10A powerhouse creates an electromagnetic field that transmits audio directly to hearing aids set to the “T-mode” (Telecoil), ensuring clear communication without background noise or reverberation.
At ChoiceCycle, we integrate the PLN-1LA10 in diverse Singaporean venues—from government halls and houses of worship to lecture theaters—ensuring your facility meets accessibility standards while delivering uncompromising audio clarity.
Technical Deep-Dive: Assistive Listening Excellence
The PLN-1LA10 is engineered to drive a wire loop installed in the floor or ceiling, covering an area of up to 600 m² per amplifier. It serves as a vital component for inclusive public spaces.
1. High-Current Output & Precise Control
10A Output Current: Specifically designed to drive low-impedance wire loops, providing a robust magnetic field for large seating areas.
Metal Loss Compensation: Modern buildings often contain structural steel that can “soak up” high-frequency magnetic energy. The PLN-1LA10 features a dedicated compensation circuit to ensure audio remains bright and intelligible regardless of the environment.
Automatic Gain Control (AGC): This intelligent circuit amplifies weak signals and attenuates loud peaks, ensuring a comfortable and consistent listening level for hearing-aid users.
2. Input Versatility & Priority Logic
2 Microphone/Line Inputs: Balanced XLR inputs with switchable phantom power (16V) allow for direct connection of microphones or background music sources.
100V Priority Input: Designed for seamless integration with the Bosch Plena Voice Alarm System. When an emergency page is triggered, the priority input overrides all other sources, ensuring life-safety instructions reach hearing-impaired individuals instantly.
VOX Functionality: Input 1 can be set to automatically mute Input 2 when speech is detected, ideal for presentations where background music needs to duck.
3. Supervision & Safety Compliance
Fail-Safe Monitoring: The unit monitors its own internal temperature, loop integrity, and pilot tones. A fail-safe relay is provided to report fault states to a central monitoring system.
EN 54-16 & EN 60849 Compliant: This allows the PLN-1LA10 to be part of an official emergency sound system in Singapore, meeting the highest safety and regulatory standards.
Design & Installation by ChoiceCycle
An induction loop is only as effective as its physical installation. ChoiceCycle provides the professional expertise to ensure your PLN-1LA10 system works flawlessly:
Loop Mapping & Layout: We design the wire loop layout to ensure uniform field strength across the entire coverage area, avoiding “dead zones” where the signal drops out.
Master/Slave Configurations: For areas larger than 600 m², we stack multiple PLN-1LA10 units in a master/slave setup to cover massive stadiums or auditoriums.
Low Spillover Schemes: In adjacent rooms (like two cinema halls), we implement “low spillover” designs to prevent audio from leaking through the walls into the next loop.
SEO Keywords for Bosch PLN-1LA10
Bosch PLN-1LA10 Plena Loop Amplifier Singapore
Induction loop amplifier for hearing aids
Bosch assistive listening system integrator
PLN-1LA10 induction loop coverage 600m2
EN 60118-4 compliant loop amplifier Singapore
Bosch Plena induction loop price Sim Lim Square
Hearing aid T-mode loop amplifier Bosch
ChoiceCycle commercial audio accessibility solutions
Technical Summary Table
| Feature | Specification |
| Max Output Current | 10 Amps |
| Coverage Area | Up to 600 m² |
| Inputs | 2x Mic/Line (XLR), 1x 100V Priority |
| Safety Standard | EN 60118-4, EN 54-16, EN 60849 |
| Frequency Response | 50 Hz to 10 kHz |
| Phantom Power | 16V (Switchable) |
| Rack Height | 2U (19-inch Rack-mount) |
| Backup Power | Fail-safe Relay Output |
Why ChoiceCycle is the Preferred Choice?
Based in Sim Lim Square, ChoiceCycle is Singapore’s leader in professional PA and security systems. When you choose the Bosch PLN-1LA10, you aren’t just buying hardware; you are gaining a partner that understands the technical nuances of induction loop physics. We provide full on-site testing, certification, and calibration to ensure your venue is accessible to everyone.
Contact Us – Choicecycle (SGCCTV Singapore)
📍 Store: SGCCTV Choicecycle
Sim Lim Square #02-81, Singapore
📞 WhatsApp: +65 9853 4404
📧 Email: enquiry@choicecycle.com.sg
🌐 Website: https://sgcctv.com.sg
🕒 Operating Hours: 11 AM – 8 PM (Daily)
The Bosch PLN-1LA10 Plena Loop Amplifier (Product No.: F.01U.012.822) is the industry standard for high-power induction loop systems, specifically engineered to provide crystal-clear assistive listening for hearing-aid users. By driving a current through a floor or ceiling wire loop, it creates a magnetic field that hearing aids (in “T” or Telecoil mode) pick up directly, bypassing ambient noise and echo.
In Singapore, where the BCA Code on Accessibility mandates inclusive environments, the PLN-1LA10 is the preferred choice for government buildings, community centers, and large houses of worship. At ChoiceCycle, we specialize in the precision engineering required to make these systems effective, ensuring every visitor enjoys an equal listening experience.
Technical Deep-Dive: The PLN-1LA10 Advantage
The PLN-1LA10 is a current-driven, high-power amplifier designed for 24/7 reliability in professional settings.
1. 10A High-Current Drive & Coverage
Massive Coverage: A single PLN-1LA10 can cover an area of up to 600 m², making it ideal for large lecture theaters, cinema halls, and auditoriums.
Master/Slave Stacking: For venues exceeding 600 m², units can be stacked in a master/slave configuration to cover massive stadiums or multi-level assembly halls.
Quadrate Configuration: Bosch’s unique quadrate design ensures a uniform field strength across the entire loop, preventing “dead spots” or signal drops as users move around.
2. Advanced Audio Processing for Intelligibility
AGC (Automatic Gain Control): This circuit automatically boosts soft voices and attenuates loud peaks, ensuring the hearing-aid user always receives a consistent, comfortable volume level.
Metal Loss Compensation: Modern buildings in Singapore use significant structural steel, which can “absorb” high-frequency magnetic signals. The PLN-1LA10 includes a specialized compensation control to restore clarity and brightness to the audio.
Speech Filter: Built-in frequency filters prioritize the human voice, making announcements easier to understand in acoustically challenging spaces like transit hubs or industrial sites.
3. Emergency Integration & Supervision
100V Priority Input: Designed for direct uplink to a Plena Voice Alarm System. During an emergency, this input overrides all background music and standard microphones.
Pilot Tone Monitoring: The priority input can be monitored for a pilot tone to ensure the connection to the voice alarm controller is always intact.
Fail-Safe Relay: Built-in supervision monitors internal temperature, loop integrity, and power. If a fault is detected, a voltage-free relay instantly alerts your central monitoring system.
2026 Accessibility Compliance in Singapore
With the 2026 focus on total societal inclusivity, the Bosch PLN-1LA10 helps your facility meet the highest international and local standards.
EN 60118-4 Compliance: Ensures the magnetic field strength, frequency response, and background noise levels meet global assistive listening standards.
EN 54-16 & EN 60849: This amplifier is fully compatible with certified emergency sound systems, making it a legal requirement for certain high-occupancy public buildings.
Zero-Interference Audio: Because the audio is transmitted magnetically, it is immune to the RF interference common in 2.4GHz/5GHz WiFi-saturated environments like modern office blocks in Sim Lim Square.
Professional Design & Commissioning by ChoiceCycle
An induction loop system is a “precision instrument” that requires professional layout and testing. ChoiceCycle provides the full suite of engineering services:
Loop Pattern Design: We utilize computer-aided design to create “Low Spillover” schemes, ensuring that audio from one room doesn’t leak into the adjacent room—critical for courtrooms and confidential meeting spaces.
Field Strength Calibration: We use professional induction loop receivers (like the PLN-ILR) to certify that your loop meets the prescribed 100 mA/m field strength across the entire seating area.
Local Maintenance: Located in Sim Lim Square, our team provides rapid onsite testing and maintenance to ensure your accessibility features are always operational.
SEO Keywords for Bosch PLN-1LA10
Bosch PLN-1LA10 Plena Loop Amplifier Singapore
Induction loop amplifier for hearing aid accessibility
F.01U.012.822 Bosch product specifications
Professional 10A hearing loop driver price
EN 60118-4 compliant induction loop integrator
Bosch Plena assistive listening system for halls
Metal loss compensation loop amplifier Bosch
ChoiceCycle accessibility audio solutions Sim Lim Square
Technical Summary Table
| Feature | Specification Details |
| Output Current | 10 Amps (Continuous) |
| Max Coverage | 600 m² (Single unit) |
| Inputs | 2x Mic/Line (XLR), 1x 100V Priority |
| Field Strength | 100 mA/m (Target) |
| Frequency Response | 50 Hz to 10 kHz |
| Supervision | Temperature, Loop, Pilot Tone |
| Output Power | 500 VA (Max consumption) |
| Weight | Approx. 11.6 kg |
Why Trust ChoiceCycle?
At ChoiceCycle, we believe that communication should be accessible to everyone. By integrating the Bosch PLN-1LA10, we bridge the gap for the hearing-impaired community in Singapore. Our team at Sim Lim Square ensures your system is not only compliant with the law but is also a high-performance audio asset for your facility.
Contact Us – Choicecycle (SGCCTV Singapore)
📍 Store: SGCCTV Choicecycle
Sim Lim Square #02-81, Singapore
📞 WhatsApp: +65 9853 4404
📧 Email: enquiry@choicecycle.com.sg
🌐 Website: https://sgcctv.com.sg
🕒 Operating Hours: 11 AM – 8 PM (Daily)
The Bosch PLN-1LA10 Plena Loop Amplifier (Product No. F.01U.012.822) remains the gold standard for wide-area assistive listening systems in Singapore. Engineered to drive induction loops in the most demanding architectural environments, this high-current amplifier ensures that hearing-aid users receive a dedicated, low-noise audio feed directly to their devices.
At ChoiceCycle, we understand that accessibility is a pillar of modern infrastructure. We integrate the PLN-1LA10 to help building owners, government agencies, and religious organizations comply with the BCA Code on Accessibility while providing a world-class listening experience for the hearing-impaired community.
Technical Deep-Dive: Precision Induction Loop Engineering
The PLN-1LA10 is a current-driven power stage that converts standard audio signals into a magnetic field. This process is governed by strict international physics standards to ensure compatibility with all T-coil equipped hearing aids.
1. High-Current Output (10 Amps)
Coverage Scalability: A single unit efficiently covers up to 600 m². For massive venues like the Singapore EXPO or National Stadium function rooms, ChoiceCycle can configure multiple units in a master/slave array to provide seamless coverage across thousands of square meters.
Current-Driven Accuracy: Unlike voltage-driven speaker amplifiers, the PLN-1LA10 focuses on current stability, which is essential for maintaining a constant magnetic field strength regardless of variations in the copper wire’s temperature or resistance.
2. Countering Structural Interference
Metal Loss Compensation: Modern Singaporean architecture often utilizes heavy steel reinforcement and metal-backed flooring. These materials “soak up” high-frequency magnetic energy, making audio sound muffled. The PLN-1LA10 features a dedicated compensation dial to boost high-end clarity, ensuring speech remains crisp and intelligible.
Low Spillover Design: In high-density office blocks or courthouses, we design “phased array” loops using the PLN-1LA10 to ensure the magnetic field stays within the intended room, preventing confidential audio from leaking into adjacent spaces.
3. Advanced Supervision & Safety Protocols
Continuous Monitoring: The unit features internal self-diagnostics that monitor loop integrity, internal temperature, and signal clipping.
Pilot Tone Detection: When integrated with a Bosch Voice Alarm system, the PLN-1LA10 monitors a 20 kHz pilot tone on its priority input to ensure the signal path from the fire alarm is always active.
Fail-Safe Relay: A voltage-free relay output allows ChoiceCycle to link the amplifier to your building management system (BMS), providing instant alerts if the loop system is compromised.
2026 Compliance: Why the PLN-1LA10 is Essential
In 2026, accessibility is not just about physical ramps; it is about digital and acoustic inclusivity. The Bosch PLN-1LA10 ensures your facility meets:
EN 60118-4 / IEC 60118-4: The global benchmark for induction loop field strength and frequency response.
EN 54-16 Compliance: This allows the loop system to be part of a certified emergency sound system, a critical requirement for public safety audits in Singapore.
Social Responsibility: Providing assistive listening enhances the user experience for the elderly and hearing-impaired, fostering a truly inclusive environment.
Professional Commissioning by ChoiceCycle
Installing an induction loop is a technical endeavor that requires specialized tools. ChoiceCycle provides the professional framework for a successful deployment:
Site Magnetism Survey: We measure background electromagnetic interference to ensure the environment is suitable for a hearing loop.
Loop Wire Installation: Our technicians install high-purity copper flat-tape or wire according to the engineered layout (Perimeter, Figure-8, or Phased Array).
Certification Testing: Using a professional Induction Loop Receiver (PLN-ILR), we calibrate the system to achieve the required 100 mA/m field strength and provide a certification report for your records.
SEO Keywords for Bosch PLN-1LA10
Bosch PLN-1LA10 Plena Loop Amplifier Singapore
Hearing aid induction loop system price
F.01U.012.822 Bosch product specifications
Professional assistive listening integrator Singapore
EN 60118-4 compliant loop amplifier installation
Bosch Plena hearing loop for auditoriums
Metal loss compensation loop driver Bosch
ChoiceCycle commercial audio and accessibility
Technical Summary Table
| Feature | Technical Specification |
| Current Output | 10 Amps (Continuous) |
| Coverage Area | Up to 600 m² (Single Unit) |
| Safety Standard | EN 60118-4, EN 54-16 |
| Inputs | 2x Mic/Line (Balanced XLR), 1x 100V Priority |
| Signal Processing | AGC, Metal Loss Comp, Speech Filter |
| Monitoring | Pilot Tone, Loop Integrity, Temperature |
| Chassis | 2U 19″ Rack-mount |
| Weight | Approx. 11.6 kg |
Why Choose ChoiceCycle at Sim Lim Square?
Based in the heart of Singapore’s technology hub at Sim Lim Square, ChoiceCycle has the technical depth to handle complex audio-visual and security integrations. When you purchase the Bosch PLN-1LA10 from us, you aren’t just getting a device—you are getting a partner dedicated to technical excellence and social inclusivity. We provide the onsite expertise to ensure your facility is welcoming to everyone.
Contact Us – Choicecycle (SGCCTV Singapore)
📍 Store: SGCCTV Choicecycle
Sim Lim Square #02-81, Singapore
📞 WhatsApp: +65 9853 4404
📧 Email: enquiry@choicecycle.com.sg
🌐 Website: https://sgcctv.com.sg
🕒 Operating Hours: 11 AM – 8 PM (Daily)
The Bosch PLN-1LA10 Plena Loop Amplifier (Product No. F.01U.012.822) is the definitive professional solution for creating inclusive, high-fidelity audio environments for the hearing-impaired. By generating a powerful magnetic field that transmits audio directly to hearing aid Telecoils (T-mode), it eliminates the acoustic barriers of echo, distance, and background noise.
At ChoiceCycle, we specialize in the engineering of these specialized current-driven systems. We ensure that your facility in Singapore—whether a heritage house of worship, a modern university lecture hall, or a government office—fully complies with the BCA Code on Accessibility and international standards like EN 60118-4.
Technical Deep-Dive: The Engineering of Inclusivity
The PLN-1LA10 is a high-power, current-driven amplifier that prioritizes consistency and clarity above all else.
1. 10A High-Current Output & Wide Coverage
Massive 600 m² Range: A single unit efficiently drives a wire loop covering up to 600 square meters.
Stackable Scalability: For massive venues (stadiums, large assembly halls), multiple units can be configured in a Master/Slave arrangement to ensure seamless magnetic coverage across thousands of square meters.
Quadrate Configuration: Bosch’s unique architecture ensures uniform field strength even when multiple loops are required, preventing signal “valleys” or drop-outs as users move through the room.
2. Sophisticated Signal Processing
Automatic Gain Control (AGC) & Limiter: The built-in AGC boosts soft speech and attenuates loud peaks, maintaining a comfortable and consistent listening level for the user. The limiter ensures the magnetic field strength stays within the legally prescribed 100 mA/m.
Metal Loss Compensation: Singapore’s steel-reinforced buildings can “soak up” high-frequency magnetic energy. The PLN-1LA10 features a dedicated compensation circuit that restores high-end clarity, ensuring speech remains bright and intelligible.
Selectable Tone Controls: Fine-tune the audio with dedicated Bass and Treble controls (-8/+8 dB) to match the room’s specific acoustics.
3. Emergency-Ready Integration
100V Priority Input: Specifically engineered for direct uplink to a Plena Voice Alarm Controller. In an emergency, this input overrides all BGM and standard mics.
Pilot Tone Supervision: The priority path can be monitored for a 20 kHz pilot tone, ensuring the link to the fire alarm system is never compromised.
Fail-Safe Relay: A voltage-free relay output provides instant reporting of fault states (thermal, loop integrity, power) to a central monitoring station.
2026 Compliance: Standards & Safety
In 2026, accessibility is a non-negotiable standard for public buildings in Singapore. The Bosch PLN-1LA10 provides the technical backbone for a compliant venue:
EN 60118-4 Compliance: The international standard for induction loop field strength and frequency response.
EN 54-16 & EN 60849 Certified: Suitable for integration into professional emergency sound and voice alarm systems.
BCA Accessibility Code: Meets the Singapore Building and Construction Authority requirements for assistive listening in public assembly areas.
ChoiceCycle: Professional Layout & Calibration
An induction loop is an “invisible” system that requires precise physical engineering. ChoiceCycle provides the professional framework for a successful deployment:
Loop Mapping: We design perimeter, figure-8, or phased array loop patterns based on your floor plan to maximize field uniformity and minimize “spillover” into adjacent rooms.
Field Strength Certification: Using the Bosch PLN-ILR (Inductive Loop Receiver), we calibrate and certify that your installation meets the required magnetic field density.
Local Expertise: Based in Sim Lim Square, our engineering team provides rapid onsite testing, maintenance, and 3-year local warranty support for all Bosch Plena systems.
SEO Keywords for Bosch PLN-1LA10
Bosch PLN-1LA10 Plena Loop Amplifier Singapore
Induction loop amplifier for hearing aids price
F.01U.012.822 Bosch product specifications
EN 60118-4 compliant hearing loop integrator
Assistive listening system for auditoriums Singapore
Bosch Plena induction loop driver 600m2
Metal loss compensation loop amplifier Bosch
ChoiceCycle accessibility audio solutions Sim Lim Square
Technical Summary Table
| Feature | Specification Details |
| Output Current | 10 Amps (Continuous) |
| Coverage Area | Up to 600 m² (Per Unit) |
| Inputs | 2x Mic/Line (Balanced XLR), 1x 100V Priority |
| Frequency Response | 50 Hz to 10 kHz (+1/-3 dB) |
| Processing | AGC, Limiter, Metal Loss Comp, Tone Control |
| Supervision | Loop, Pilot Tone, Temperature, Fail-safe Relay |
| Form Factor | 2U 19-inch Rack-mount (11.6 kg) |
