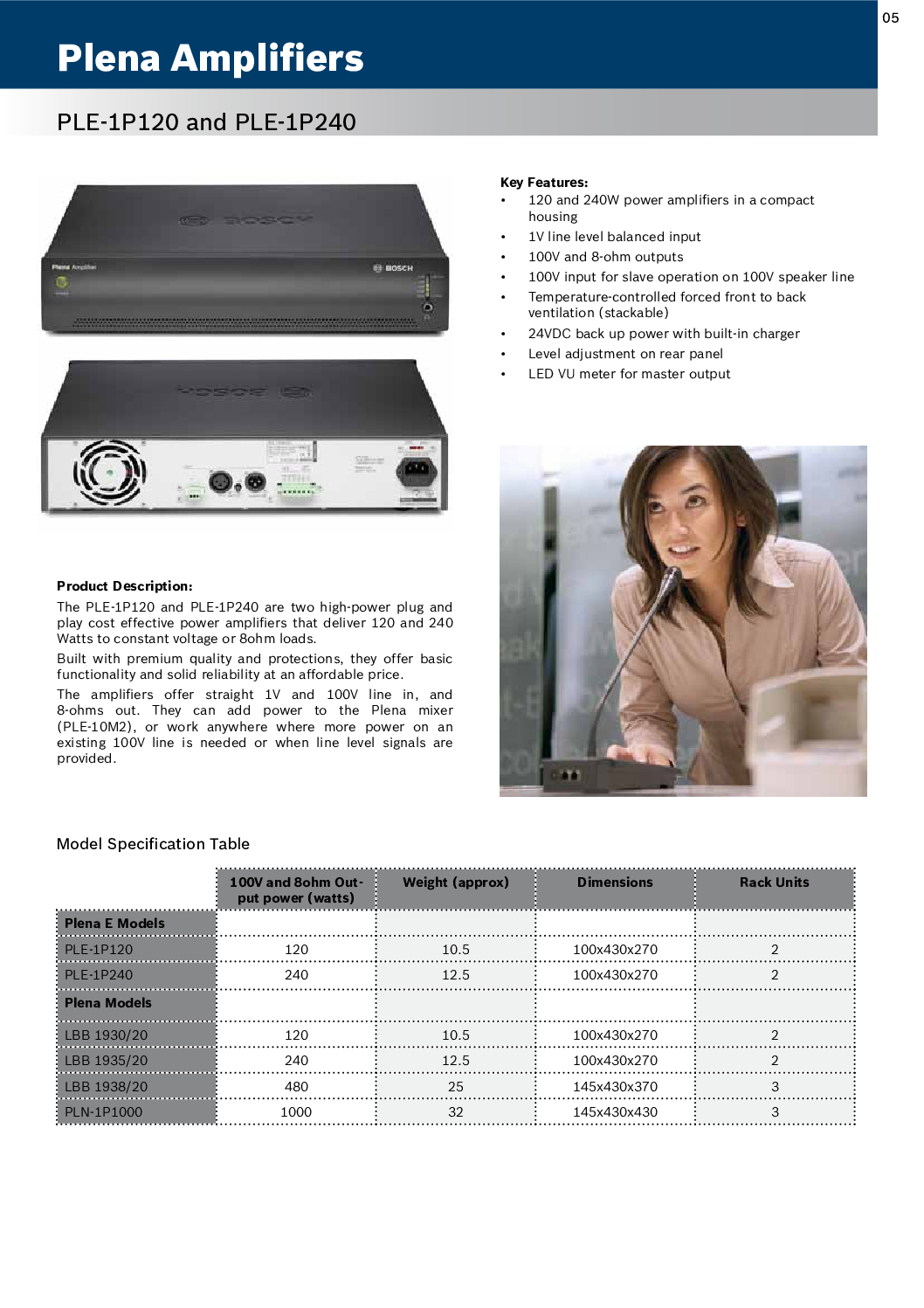

Bosch PLE-1P120 Plena Power Amplifier NEW JJ

The Bosch PLE-1P120 Plena Power Amplifier (CTN: PLE-1P120-EU | Product No.: F.01U.051.408) is a high-performance, single-channel power amplifier designed for professional public address and voice alarm applications. Capable of delivering 120W of continuous power, it serves as the rugged “muscle” behind the Bosch Plena Easy Line, driving 70V/100V line speakers or low-impedance loads with exceptional thermal stability.

At ChoiceCycle, we recognize that an amplifier is the most hardworking component of any audio system. We integrate the PLE-1P120 for clients in Singapore—from retail outlets in Sim Lim Square to industrial facilities in Jurong—who require consistent, high-fidelity audio reinforcement.

Technical Architecture: The 120W Powerhouse

The PLE-1P120 is engineered for 24/7/365 industrial operation. It is a 2U rack-mount unit that prioritizes safety, efficiency, and speech intelligibility.

1. High-Performance Output Versatility

The amplifier is designed to drive a variety of speaker configurations, making it one of the most versatile units in the Plena range:

• 100V / 70V Constant Voltage: Ideal for long cable runs across large warehouses or multi-story buildings, ensuring minimal signal loss.

• 8 Ohm Low-Impedance: Perfect for high-fidelity music applications in smaller retail spaces or boardrooms.

• Balanced Line Input/Output: Features a 3-pin XLR balanced input with a parallel loop-through output, allowing for easy daisy-chaining with additional amplifiers (like the PLE-1P240) for larger sites.

2. Thermal and Electrical Protection

Industrial environments can be harsh on electronics. The PLE-1P120 is built with multiple fail-safes:

• Overload and Short-Circuit Protection: The unit automatically limits output if a speaker line is shorted or if the load exceeds 120W, preventing permanent hardware damage.

• Temperature-Controlled Cooling: An internal fan regulates airflow based on the heat output of the power transistors, ensuring silent operation during low usage and maximum cooling during high-volume events.

• Limiter Circuitry: Prevents signal clipping and distortion, ensuring that even if an announcement is shouted into a microphone, the output remains clear and safe for the speakers.

3. Emergency & Backup Readiness

In Singapore, compliance with fire safety and emergency evacuation standards is mandatory. The PLE-1P120 is “Emergency Ready”:

• 24V DC Backup Input: Includes a dedicated 24V DC input for battery backup. If the main power fails, the amplifier switches instantly to DC power, ensuring the PA system remains operational for emergency instructions.

• Battery Charger Integrated: When connected to AC power, the unit can maintain the charge of the connected batteries.

Key Enterprise Features: Clarity & Control

Intelligent Audio Monitoring

The front panel features a clear VU meter (LED bar) that allows ChoiceCycle technicians and site managers to monitor the output levels in real-time. This helps prevent “over-driving” the system and ensures a consistent volume across all zones.

100V Input (Slave Operation)

A unique feature of the PLE-1P120 is its 100V Input. This allows the amplifier to be used as a “slave” to a master 100V line. It can take an existing speaker signal and “boost” it for a new area, making it an excellent choice for facility expansions where adding a new preamp is not feasible.

Smart Equalization

While the mixer (like the PLE-10M2) handles the primary EQ, the PLE-1P120 ensures the power stage remains faithful to the source. It maintains a frequency response of 50 Hz to 20 kHz, providing the warmth needed for background music and the crispness required for emergency paging.

Installation & Optimization by ChoiceCycle

A professional power amplifier requires professional commissioning. ChoiceCycle provides the technical expertise to maximize the lifespan of your Bosch hardware.

Impedance Matching & Load Calculation

We perform precise calculations to ensure the total wattage of your speakers does not exceed the 120W limit. Overloading an amplifier is the #1 cause of system failure; our “Safe-Buffer” approach ensures your PLE-1P120 runs cool and lasts for years.

Thermal Rack Planning

At 2U height, these units generate significant heat when pushed. We ensure proper ventilation within your server racks, utilizing spacers and high-static pressure cooling if necessary, especially for non-air-conditioned industrial environments in Singapore.

Redundant Power Setup

For mission-critical sites, ChoiceCycle installs dedicated 24V battery racks. We test the “Auto-Switchover” functionality to ensure that your Public Address system meets the rigorous standards required for government and high-security facility audits.

SEO Keywords for Bosch PLE-1P120

• Bosch PLE-1P120 Plena Power Amplifier Singapore

• F.01U.051.408 Bosch product specifications

• 120W 100V line amplifier for public address

• Professional PA system power amplifier Bosch

• Bosch Plena Easy Line integrator Singapore

• 24V DC backup power amplifier for CCTV/PA

• 100V input slave amplifier Bosch PLE-1P120

• ChoiceCycle Bosch audio installation and support

Technical Summary Table

Why ChoiceCycle is the Gold Standard

Located in Sim Lim Square, ChoiceCycle is more than a retailer—we are your engineering partner. When you purchase the Bosch PLE-1P120 from us, you gain access to decades of experience in high-end surveillance and audio integration. We ensure your system is NDAA compliant, thermally optimized, and ready for 2026’s security demands.

Contact Us – Choicecycle (SGCCTV Singapore)

📍 Store: SGCCTV Choicecycle

Sim Lim Square #02-81, Singapore

📞 WhatsApp: +65 9853 4404

📧 Email: enquiry@choicecycle.com.sg

🌐 Website: https://sgcctv.com.sg

🕒 Operating Hours: 11 AM – 8 PM (Daily)

The Bosch PLE-1P120 Plena Power Amplifier (Product No. F.01U.051.408) is a fundamental building block for any robust Public Address (PA) and Voice Alarm (VA) system. As a high-efficiency 120W power stage, the PLE-1P120 is designed to take the low-level signal from a mixer (such as the PLE-10M2) and amplify it to drive long strings of 100V or 70V speakers across large-scale facilities.

At ChoiceCycle, we view the PLE-1P120 as the “unseen hero” of the security world. While cameras and microphones get the attention, it is this amplifier that ensures your emergency instructions are heard clearly above the noise of a busy warehouse, a crowded retail floor, or a multi-story car park in Singapore.

Industrial Engineering: Built for 24/7 Reliability

The PLE-1P120-EU is part of the Plena Easy Line, which emphasizes simplicity without compromising on industrial durability. It is housed in a heavy-duty 2U rack-mount chassis, engineered to survive the heat and humidity of non-air-conditioned utility rooms common in Singapore’s industrial sectors.

1. Versatile Load Management

The amplifier provides a variety of output taps to suit different installation architectures:

• 100V and 70V Line Outputs: These “constant voltage” outputs are essential for large-scale sites. They allow ChoiceCycle to daisy-chain dozens of speakers over hundreds of meters without the signal degradation or power loss associated with standard home audio.

• 8 Ohm Low-Impedance Output: For specialized applications, such as a localized high-fidelity music zone or a boardroom, the PLE-1P120 can drive standard 8-ohm speakers directly.

2. Advanced Protection Circuitry

Failure is not an option for a safety-critical PA system. The PLE-1P120 includes three layers of hardware protection:

• Thermal Protection: If the internal temperature exceeds safe limits due to poor ventilation or extreme ambient heat, the system automatically limits the output or shuts down safely to prevent a fire hazard.

• Overload & Short-Circuit Protection: If a speaker line is accidentally cut or shorted during renovation works, the amplifier detects the “impedance drop” and protects its internal transistors from burning out.

• Peak Limiter: The built-in limiter prevents signal “clipping,” ensuring that even if an announcement is made at excessive volumes, the audio remains intelligible and the speakers are protected from damage.

3. Smart Slave Functionality (100V Input)

A unique technical advantage of the PLE-1P120 is its 100V Slave Input. This allows the unit to act as a “booster” for an existing 100V system. Instead of running new low-voltage signal cables from a central mixer, ChoiceCycle can simply “tap” into a nearby 100V speaker line to provide an additional 120W of power for a new extension or zone.

Safety Compliance: The 24V DC Backup Advantage

In accordance with Singapore’s SCDF and fire safety regulations, critical PA systems must remain operational during a power outage. The PLE-1P120 is fully compliant with these requirements.

• Dual Power Input: The unit runs on standard 115–230 VAC but features a dedicated 24V DC input.

• Automatic Switchover: ChoiceCycle integrates these amplifiers with industrial-grade 24V battery racks. In the event of a building-wide power failure, the PLE-1P120 switches to DC power instantaneously, ensuring that emergency evacuation messages can still be broadcast.

• Integrated Charging: The unit includes a trickle-charger for the connected batteries, keeping them at peak health during normal AC operation.

Professional Commissioning by ChoiceCycle

Integrating a 120W power stage into a complex network requires precision. ChoiceCycle provides the professional framework for a successful deployment:

1. Impedance Testing: We use professional meters to measure the “Total Line Impedance” of your speaker network. We ensure that the total load never exceeds 120W, leaving a 10–20% safety margin for long-term transistor health.

2. Gain Structuring: We balance the input sensitivity (XLR balanced) to match the output of your mixer. This prevents “hiss” during quiet periods and ensures zero distortion during peak announcements.

3. Rack Thermal Mapping: We ensure that multiple PLE-1P120 units are spaced correctly within the server rack. Since these are high-power units, we calculate the total BTU output to ensure your server room’s cooling system can handle the load.

SEO Keywords for Bosch PLE-1P120-EU

• Bosch PLE-1P120-EU Plena Power Amplifier

• F.01U.051.408 Bosch product specs Singapore

• 120 Watt 100V line amplifier price

• Professional PA system power stage Bosch

• Industrial 70V amplifier for warehouses

• 24V DC battery backup power amplifier

• Bosch Plena Easy Line 120W amplifier integrator

• ChoiceCycle commercial audio installation Sim Lim Square

Technical Summary Table

The ChoiceCycle Quality Assurance

When you invest in Bosch hardware through ChoiceCycle, you are choosing more than just a product. You are choosing a partner located at Sim Lim Square that understands the specific infrastructure needs of Singapore. We ensure your system is thermally optimized, correctly loaded, and fully ready for the demands of 2026.

Contact Us – Choicecycle (SGCCTV Singapore)

📍 Store: SGCCTV Choicecycle

Sim Lim Square #02-81, Singapore

📞 WhatsApp: +65 9853 4404

📧 Email: enquiry@choicecycle.com.sg

🌐 Website: https://sgcctv.com.sg

🕒 Operating Hours: 11 AM – 8 PM (Daily)

The Bosch PLE-1P120 Plena Booster Amplifier (CTN: PLE-1P120-EU | Product No.: F.01U.051.408) is the definitive high-fidelity power stage for commercial public address (PA) and voice evacuation systems. Engineered for the rugged demands of Singapore’s industrial and retail sectors, this 120W powerhouse provides the critical “muscle” needed to drive large arrays of 100V, 70V, or low-impedance 8-ohm speakers with unwavering reliability.

At ChoiceCycle, we integrate the PLE-1P120 as a core component for facilities that cannot afford audio downtime. From centralized malls in Sim Lim Square to high-density HDB community hubs, this amplifier ensures every announcement and background music track is delivered with professional clarity.

Technical Excellence: The Core of the PLE-1P120

The PLE-1P120 is not just an amplifier; it is a high-availability power management system. Designed for 24/7/365 operation, it offers a level of technical sophistication that protects your investment and ensures site safety.

1. 120W Pure RMS Power (180W Peak)

While rated at 120W, the PLE-1P120 is capable of handling peak surges up to 180W. This provides the “headroom” necessary to handle sudden audio peaks without distortion or hardware failure.

• Frequency Response: A wide 50 Hz to 20 kHz range ensures that background music remains rich and warm, while speech remains crisp and intelligible.

• Low Distortion: With a Total Harmonic Distortion (THD) of <1% at rated output, your audio quality remains pristine even at high volumes.

2. Sophisticated Dual-Input Architecture

• Balanced 1V Line Input: Features a professional 3-pin XLR connector for interference-free audio signals from your mixer (like the PLE-10M2). It also includes a parallel loop-through output for effortless daisy-chaining of multiple amplifiers.

• 100V Slave Input: This unique feature allows the PLE-1P120 to act as a “booster” in remote locations. It can take a 100V signal directly from an existing speaker line and amplify it for a new zone, eliminating the need for long, expensive low-voltage cable runs.

3. Industrial-Grade Protections

• Active Thermal Management: A temperature-controlled, low-noise fan adjusts its speed based on the load. It pulls air from front to back, allowing amplifiers to be stacked directly in your rack without overheating.

• Electronic Overload Protection: Automatically limits the output power if it detects a short circuit or excessive speaker load, protecting the internal power transistors from permanent damage.

• Built-in Limiter: Prevents “clipping” and overdriving, ensuring that loud emergency pages don’t damage your high-end Bosch ceiling or cabinet speakers.

2026 Ready: Safety and Compliance in Singapore

In 2026, compliance with local safety regulations (such as SCDF fire safety standards) is more critical than ever. The PLE-1P120 is built to meet these rigorous demands.

Automatic 24V DC Backup Switchover

The PLE-1P120 features a dual power supply architecture. It runs on standard 230V AC but includes a dedicated 24V DC battery input.

• Zero Latency Switch: If the building power fails, the amplifier switches to battery backup instantly.

• Integrated Charger: The unit includes a built-in trickle charger (0.5 ADC) to keep your backup batteries at full health during normal operation, saving you the cost of an external charging system.

Smart Hardware Controls

• Rear-Mounted Gain Control: To prevent unauthorized tampering, the master volume/gain knob is located on the rear of the unit. This is ideal for public installations in Singapore where “set-and-forget” reliability is needed.

• LED VU Meter: The front panel features a clear LED bar displaying levels from -18 dB to 0 dB, allowing for instant visual confirmation of system performance.

ChoiceCycle: Professional Integration & Commissioning

Buying the hardware is only half the battle. ChoiceCycle provides the professional framework to ensure your Bosch PLE-1P120 performs to its full potential.

1. Impedance Balancing: Our technicians calculate the exact “Total Wattage” of your 100V speaker network to ensure you are within the 120W safety margin.

2. Rack Optimization: We manage the thermal mapping of your server racks. Using the PLE-1P120’s front-to-back ventilation, we can design compact, high-power racks for sites with limited space.

3. Local Expertise: Based in Sim Lim Square, we offer immediate onsite support and a 3-year local warranty, ensuring your facility’s audio infrastructure remains operational for years to come.

SEO Keywords for Bosch PLE-1P120

• Bosch PLE-1P120 Plena Power Amplifier Singapore

• F.01U.051.408 Bosch product specifications

• 120W 100V booster amplifier for public address

• Professional PA system amplifier with 24V DC backup

• Bosch Plena Easy Line 120W amplifier price

• 100V slave input amplifier for remote booster zones

• Industrial-grade 2U rack mount amplifier Bosch

• ChoiceCycle commercial audio systems installation Singapore

Technical Summary Table
