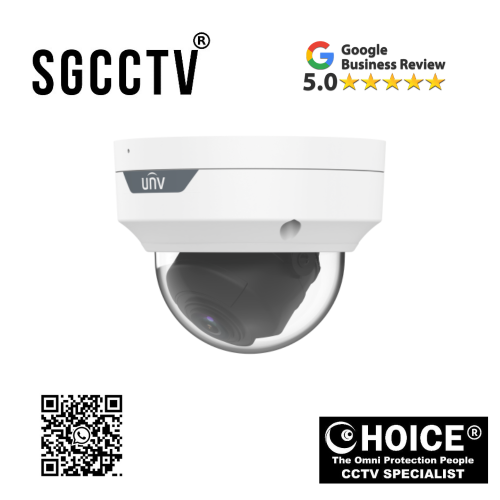

UNV Uniview PC3534LB-ADZK-H 4MP VF IR Dome Network Camera: High-Performance Surveillance with Advanced Storage and Imaging Capabilities

In today’s rapidly evolving security landscape, the demand for intelligent, high-resolution surveillance solutions has never been greater. Businesses, institutions, and property owners are increasingly seeking reliable systems that not only capture clear footage but also provide flexibility, scalability, and long-term value. The UNV Uniview PC3534LB-ADZK-H 4MP VF IR Dome Network Camera stands out as a powerful solution designed to meet these modern security challenges. With its advanced imaging technology, robust storage capabilities, and versatile deployment features, this camera is engineered to deliver exceptional performance across a wide range of applications.

At the heart of the UNV Uniview PC3534LB-ADZK-H is its high-quality 4MP resolution powered by a 1/3.0″ CMOS sensor. This combination ensures that every frame captured is rich in detail, clarity, and accuracy. In surveillance, image quality is critical—not just for monitoring, but for identification and evidence. A 4MP camera provides significantly more detail than traditional 1080p systems, allowing users to zoom in on specific areas without losing clarity. Whether it’s identifying faces, reading license plates, or analyzing incidents, the enhanced resolution offers a clear advantage in both real-time monitoring and post-event investigation.

The integration of a 1/3.0″ CMOS sensor further enhances the camera’s imaging capabilities. This sensor is designed to perform well in various lighting conditions, ensuring consistent image quality throughout the day and night. In environments where lighting can be unpredictable—such as parking lots, warehouses, or building entrances—the ability to maintain clarity is essential. The sensor works in tandem with advanced image processing technologies to reduce noise, improve contrast, and deliver balanced exposure, resulting in crisp and reliable footage.

One of the standout features of the UNV Uniview PC3534LB-ADZK-H is its vari-focal (VF) lens, which provides flexible viewing angles and coverage. Unlike fixed-lens cameras, a vari-focal lens allows users to adjust the focal length to suit specific surveillance needs. This means a single camera can be configured for wide-area monitoring or zoomed-in detail capture, depending on the environment. This flexibility reduces the need for multiple cameras, simplifying system design and lowering overall costs. For installers and system integrators, this adaptability translates into easier deployment and greater efficiency.

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

Infrared (IR) capability is another key feature that enhances the camera’s performance, particularly in low-light or no-light conditions. The built-in IR illumination enables the camera to capture clear images even in complete darkness. This is crucial for 24/7 surveillance, ensuring that security is maintained at all times. The IR technology is designed to provide uniform illumination, minimizing hotspots and ensuring that subjects are clearly visible across the entire frame. Whether monitoring outdoor perimeters or indoor spaces after hours, the camera delivers dependable night-time performance.

Storage is a critical consideration in any surveillance system, and the UNV Uniview PC3534LB-ADZK-H addresses this with its support for MicroSD cards up to 512GB. This feature provides a convenient and cost-effective way to store video footage locally. In scenarios where network connectivity may be limited or where centralized storage is not feasible, onboard storage ensures that critical data is still captured and محفوظ. The ability to store large volumes of footage directly on the camera also adds a layer of redundancy, enhancing overall system reliability.

The inclusion of high-capacity MicroSD storage also supports flexible recording options. Users can configure the camera for continuous recording, scheduled recording, or event-based recording, depending on their requirements. This flexibility helps optimize storage usage and ensures that important events are captured without unnecessary data accumulation. For businesses looking to balance performance with cost, this feature provides a practical and efficient solution.

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

Durability and design are equally important in surveillance equipment, and the dome form factor of the UNV Uniview PC3534LB-ADZK-H offers several advantages. Dome cameras are known for their discreet appearance and resistance to tampering. The compact design allows for installation in a variety of locations without drawing unnecessary attention, making it ideal for both indoor and outdoor use. Additionally, the dome housing helps protect the camera from environmental factors and physical interference, ensuring long-term reliability.

The camera’s robust construction makes it suitable for deployment in diverse environments, including retail stores, offices, schools, industrial facilities, and residential properties. Its ability to perform consistently under different conditions makes it a versatile choice for a wide range of security applications. Whether used as part of a large-scale surveillance network or a standalone system, the UNV Uniview PC3534LB-ADZK-H delivers dependable performance.

From an installation perspective, the camera is designed to be user-friendly and efficient. The vari-focal lens simplifies setup by allowing adjustments without the need to replace hardware. The support for MicroSD storage reduces reliance on external recording devices, streamlining system architecture. Additionally, compatibility with standard network protocols ensures seamless integration with existing video management systems (VMS). This ease of integration is particularly valuable for organizations looking to upgrade their current systems without extensive modifications.

Another important aspect of modern surveillance systems is scalability. As security needs grow, systems must be able to expand without significant disruption. The UNV Uniview PC3534LB-ADZK-H is designed with scalability in mind, allowing users to add more cameras and storage as needed. This makes it a future-proof investment that can adapt to changing requirements over time.

In terms of performance optimization, the camera incorporates advanced compression technologies to reduce bandwidth and storage usage without compromising image quality. Efficient compression ensures that high-resolution video can be transmitted and stored effectively, even in environments with limited network resources. This is particularly beneficial for remote monitoring and cloud-based storage solutions, where bandwidth efficiency is crucial.

The UNV Uniview PC3534LB-ADZK-H also aligns with the growing trend of smart surveillance. While its core strength lies in high-quality imaging and storage, it can be integrated into broader security ecosystems that include analytics, alarms, and access control systems. This integration enables more comprehensive security solutions, allowing users to leverage data for improved decision-making and operational efficiency.

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

From an SEO perspective, this camera aligns with key search terms such as “4MP dome network camera,” “Uniview IP camera with MicroSD 512GB,” “IR dome surveillance camera,” and “vari-focal security camera.” By addressing these keywords and highlighting the camera’s unique features, businesses can improve their online visibility and attract customers seeking reliable and high-performance surveillance solutions.

In conclusion, the UNV Uniview PC3534LB-ADZK-H 4MP VF IR Dome Network Camera offers a compelling combination of high-resolution imaging, flexible lens configuration, robust storage options, and reliable performance. Its 4MP resolution and 1/3.0″ CMOS sensor ensure clear and detailed footage, while its support for up to 512GB MicroSD storage provides convenient and secure data management. The addition of IR capability and a vari-focal lens further enhances its versatility, making it suitable for a wide range of applications.

For organizations and individuals seeking a dependable and cost-effective surveillance solution, the UNV Uniview PC3534LB-ADZK-H stands out as a strong contender. Its balance of performance, flexibility, and value makes it an ideal choice for modern security needs, delivering the clarity and reliability required to protect assets and ensure peace of mind.

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🏭 How the UNV 4MP Dome Camera Is Made

1. 🧠 Design & Engineering Stage

Everything starts with product design at the manufacturer level (Uniview R&D).

Engineers define:

• 📷 Image quality target (4MP resolution)
• 🌙 Night vision range (IR distance + LEDs)
• 🔭 Lens type (vari-focal design)
• 🌧️ Weather resistance requirements
• 💾 Storage support (up to 512GB MicroSD)

👉 At this stage, they also design:

• Circuit boards
• Heat dissipation structure
• Dome housing shape

2. 🧩 CMOS Sensor Production (The “Eye” of the Camera)

At the heart of the camera is the 1/3.0″ CMOS image sensor.

Manufacturing involves:

• Silicon wafer processing
• Photodiode layering for light capture
• Micro-pixel calibration for 4MP resolution
• Noise reduction optimization

👉 This sensor is what allows:

• Clear daytime imaging
• Better low-light performance
• Sharp digital zoom detail

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

3. 🔬 Lens Manufacturing (Vari-Focal System)

The VF (vari-focal) lens is made in precision optical factories.

Process includes:

• Grinding and polishing glass elements
• Coating lenses to reduce glare (anti-reflection coating)
• Assembling adjustable focal mechanism
• Calibration for zoom accuracy

👉 This is why installers can:

• Adjust viewing angle
• Switch between wide and zoomed focus

4. ⚙️ PCB (Main Circuit Board) Assembly

This is the “brain” of the camera.

Manufacturing steps:

• SMT (Surface Mount Technology) placement of chips
• CPU + image processing chip integration
• Memory integration (for video encoding + buffering)
• Power regulation circuits added

👉 This board handles:

• Video processing
• Compression (H.265/H.264)
• Network transmission

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

5. 🌙 IR Night Vision Module

Infrared capability is built using:

• IR LED ring or array
• Light sensors for day/night switching
• IR driver circuits

👉 How it works:

• When light drops → sensor triggers IR mode
• LEDs emit infrared light (invisible to humans)
• Camera captures reflected IR light for clear night images

💾 6. MicroSD Storage Integration

The camera is designed with:

• Built-in SD card slot
• Controller chip for up to 512GB support
• File system optimization for continuous recording

👉 This allows:

• Edge recording (no NVR needed if configured)
• Backup storage if network fails

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🏠 7. Dome Housing Manufacturing

The physical body is made using industrial molding:

• Polycarbonate or metal base
• Injection molding for dome cover
• UV-resistant coating for outdoor durability
• IP-rated sealing (rubber gaskets + waterproof joints)

👉 This is what gives:

• Dust protection
• Water resistance
• Anti-vandal strength

🧪 8. Assembly Line Integration

At the factory:

1. Sensor + lens + PCB are assembled
2. IR module is installed
3. Dome housing is sealed
4. Firmware is loaded

Then each unit is:

• Powered on
• Tested for image clarity
• Checked for IR function
• Verified for network connectivity

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🔍 9. Quality Control Testing

Before shipping, each camera goes through strict checks:

• 🎥 Image sharpness test (4MP verification)
• 🌙 Night vision distance test
• 🔌 Network stability test
• 💾 SD card write/read test
• 🌧️ Waterproof pressure test (IP standard validation)

👉 Any defective units are rejected immediately.

📦 10. Packaging & Distribution

Finally:

• Camera is sealed in anti-static packaging
• Accessories included (mount, screws, manual)
• Shipped to distributors like integrators and CCTV suppliers

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

⚡ Simple Summary

The UNV PC3534LB-ADZK-H is made by combining:

• 🧠 Smart processing chips
• 📷 Precision CMOS imaging sensor
• 🔭 Adjustable optical lens system
• 🌙 Infrared night vision LEDs
• 🏠 Weatherproof dome housing
• 💾 Embedded storage system

👉 Then everything is tested, calibrated, and assembled into a fully IP surveillance device.

🔧 How to Install UNV 4MP Dome IP Camera (Step-by-Step)

🧭 1. Plan the Installation Location

Before mounting anything, decide:

• 📍 Coverage area (entrance, corridor, carpark, lobby)
• 🎯 Viewing angle (what you must capture clearly)
• 🌙 Lighting conditions (avoid strong backlight if possible)
• 📶 Network access (LAN cable route)

👉 Best mounting height: 2.5m – 4m

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🪛 2. Mount the Camera Bracket

Steps:

1. Mark drilling points on ceiling or wall
2. Drill holes and insert wall plugs
3. Fix the mounting base securely
4. Attach dome camera housing

💡 Tip:
For outdoor use, make sure:

• Screws are stainless steel
• Surface is stable (no vibration)

🔌 3. Run Network Cable (PoE Recommended)

This camera is IP-based, so you need:

• Cat5e / Cat6 cable
• PoE switch or PoE injector

Connection:

👉 Benefits of PoE:

• Power + data in one cable
• Cleaner installation
• More stable than separate power supply

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

⚙️ 4. Access the Camera on Network

Once powered:

1. Connect laptop to same network
2. Use UNV IP search tool (EZStation / ConfigTool)
3. Find camera IP address
4. Log in via browser or VMS software

👉 Default login credentials depend on setup (change immediately for security)

🎯 5. Adjust the Lens (Very Important)

This is a vari-focal camera, so you must adjust manually:

• Loosen lens adjustment screws
• Zoom in/out to set field of view
• Focus until image is sharp
• Lock screws after adjustment

💡 Tip:

• Wide angle = entrances / open areas
• Zoomed view = gates / license plate zones

🌙 6. Configure Day/Night (IR Setup)

Check infrared night vision:

• Cover sensor or wait for low light
• Ensure IR LEDs activate automatically
• Test visibility in dark conditions

Adjust:

• IR intensity (if available in settings)
• Smart IR mode to avoid overexposure

💾 7. Set Up MicroSD Recording (Optional but Recommended)

Supports up to 512GB MicroSD card

Steps:

1. Insert SD card into slot
2. Format via camera interface
3. Enable recording mode:
   • Continuous
   • Motion detection
   • Event-based

👉 This gives backup recording even if NVR fails.

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🖥️ 8. Connect to NVR or VMS (Optional)

If using full system:

• Add camera via IP address
• Or auto-detect using ONVIF
• Assign channel and storage path

Compatible with:

• UNV NVR
• Third-party VMS systems

🎥 9. Adjust Image Settings

Inside camera settings:

• Resolution: 4MP (max quality)
• Frame rate: 25/30 fps
• Compression: H.265 (recommended)
• WDR: Enable for bright/dark contrast areas

👉 Fine-tune brightness, contrast, and sharpness based on site.

🌧️ 10. Final Weatherproof Check

Even though it’s outdoor-ready:

• Tighten dome cover properly
• Seal cable entry points
• Ensure no water gaps
• Check IP-rated rubber sealing

👉 This ensures long-term reliability outdoors.

🧪 11. Final Testing

Before leaving site:

• Check live view
• Walk test (motion detection)
• Verify night IR clarity
• Test recording playback
• Confirm remote access (mobile/app if used)

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

⚠️ Common Installation Mistakes

❌ Poor cable quality (causes lag or disconnects)
❌ Wrong lens focus after adjustment
❌ Mounting too low (vandal risk)
❌ Forgetting to format SD card
❌ Not tightening dome cover (water ingress risk)

✅ Quick Installation Flow

1. Plan location
2. Mount bracket
3. Run PoE cable
4. Access IP camera
5. Adjust lens
6. Configure IR
7. Set recording
8. Connect NVR
9. Final tuning
10. Test system

👍 Bottom Line

Installation is simple, but performance depends heavily on:

• Proper lens adjustment
• Correct placement
• Clean network setup

Done right, this camera gives you sharp 4MP footage, reliable night vision, and stable 24/7 recording.

For the UNV Uniview PC3534LB-ADZK-H 4MP VF IR Dome Network Camera, the warranty is usually not a fixed universal number printed on the product itself, but here’s the real industry-standard answer used by UNV distributors and installers:

🛡️ Warranty (Typical for UNV Uniview Cameras)

📦 Standard Warranty

• ✔ Usually 2 to 3 years manufacturer warranty (depending on region and distributor policy)

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

📄 What the Warranty Covers

Generally includes:

• Manufacturing defects
• Hardware failure under normal use
• Sensor or internal electronics issues
• Factory faults in image or IR function

⚠️ What Is NOT Covered

Even under warranty, most policies exclude:

• ❌ Incorrect installation (very common issue)
• ❌ Water damage due to poor sealing (even with IP67/IP66 cameras)
• ❌ Electrical surge damage (unless surge protection used)
• ❌ Physical damage / vandalism
• ❌ Improper power supply (wrong PoE or voltage)

🔧 Important Real-World Detail

From official UNV support structure:

• Warranty claims go through RMA process (Return Merchandise Authorization)
• You usually must go through your installer or reseller, not directly to factory

🧠 What This Means in Simple Terms

Think of it like this:

👉 The camera is covered for factory defects only
👉 The installer + system setup determines whether warranty stays valid

So:

• Good installation = full protection
• Bad installation = warranty easily voided

🏁 Bottom Line

For the UNV PC3534LB-ADZK-H:

• 🛡️ Typical warranty: 2–3 years
• 🔧 Covers factory defects only
• ⚠️ Installation quality is critical to keep warranty valid

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

👍 When it IS easy (DIY-friendly)

You can install it yourself if you have:

• Basic drilling + mounting skills
• Experience with LAN cables (Cat5e/Cat6)
• A PoE switch or PoE injector
• A laptop/phone to access IP camera settings

👉 In this case, setup is mostly:

• Mount camera
• Plug LAN cable
• Find IP address
• Adjust lens
• Done

So yes—physically and basic setup is not hard

⚙️ What makes it slightly tricky

Where people struggle:

1. Network setup

• Finding camera IP
• Logging into web interface
• Configuring NVR or app

2. Lens adjustment (very important)

• It’s vari-focal (zoom + focus manually)
• If not adjusted properly → blurry or useless footage

3. Recording setup

• MicroSD vs NVR setup
• Motion detection configuration

4. Night vision tuning

• IR reflection issues if mounted wrong
• Overexposure in close objects

⚠️ Common DIY mistakes

• Wrong camera angle (captures ceiling or floor)
• Poor cable termination → unstable video
• No waterproof sealing outdoors
• Forgetting to format SD card
• Using non-PoE power setup incorrectly

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW

🧠 Real answer (important)

• 🟢 Basic install: Easy (2–3/10 difficulty)
• 🟡 Proper professional setup: Medium (5–6/10 difficulty)
• 🔴 Multi-camera + NVR system: Needs installer knowledge

💡 Should you DIY or get installer?

DIY is OK if:

• 1–2 cameras only
• Indoor environment
• No complex recording system

Get installer if:

• Multiple cameras (4–32 units)
• Warehouse / factory / outdoor site
• Need remote viewing + NVR recording
• Want proper cable routing + waterproofing

UNV UNIVIEW PC3534LB-ADZK-H 4MP VF IR Dome Network Camera High quality image with 4 MP, 1/3.0″ CMOS sensor MicroSD, up to 512 GB NEW
