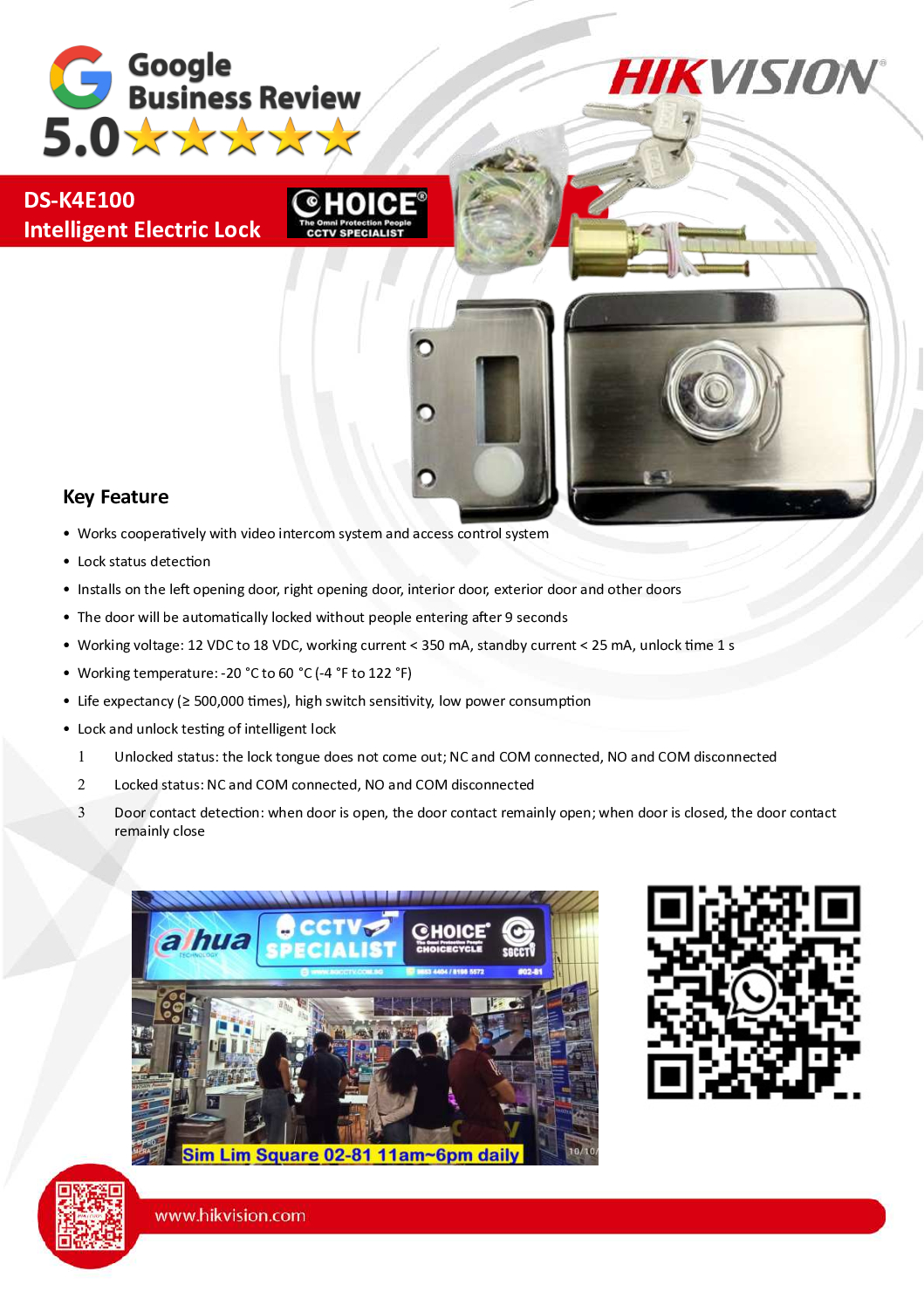

🔐 HIKVISION DS-K4E100 Electric Motor Lock

Intelligent Electric Lock for Access Control, Fingerprint Reader & RFID Systems (Office / Warehouse / Commercial Use – Singapore)

🚪 What is the HIKVISION DS-K4E100?

The Hikvision DS-K4E100 is a high-security intelligent electric motor lock designed for seamless integration with fingerprint access control systems, RFID card readers, and keypad terminals. It is widely deployed in offices, warehouses, server rooms, and restricted access zones where reliability and security are critical.

⚙️ Key Features & Specifications

🔒 Intelligent Motorized Locking System

• Built-in motor-driven locking mechanism
• Automatic lock/unlock via access control signal
• Smooth and silent operation (compared to magnetic locks)

🧠 Smart Access Control Integration

Fully compatible with:

• Fingerprint terminals
• RFID card readers
• PIN/keypad systems

Works seamlessly with:

• iVMS-4200
• Hik-Connect

⚡ Fail-Safe / Fail-Secure Configuration

• Supports secure locking logic during power events
• Ensures controlled access during emergencies

👉 Ideal for compliance with building safety requirements.

🏢 Heavy-Duty Design for Commercial Use

• Strong metal housing
• Durable latch mechanism
• Designed for high-frequency usage environments

Perfect for:

• Office main doors
• Warehouse access points
• Industrial entry doors

🔌 Flexible Power & Installation

• 12V DC operation
• Compatible with standard access control panels
• Easy integration with:
  • Exit buttons
  • Door sensors
  • Alarm systems

📊 Advantages Over Traditional Locks

🎯 Ideal Applications in Singapore

• 🏢 Corporate office access control
• 🏭 Warehouse security doors
• 🧾 HR attendance + door entry integration
• 🔐 Server room & restricted area protection

🔧 Professional Installation (Recommended)

For optimal performance, pair with:

• Fingerprint reader (e.g. Hikvision terminal)
• Power supply with surge protection
• UPS backup system

👉 Reliable UPS solutions by CHOICECYCLE ensure continuous operation during power failure.

📈 Benefits (Why Choose DS-K4E100?)

• “Electric motor lock Singapore”
• “Fingerprint door lock system office warehouse”
• “Hikvision door access control lock installation”
• “Secure door lock with RFID and biometric integration”

👉 Highly searched solutions for modern smart security systems

💼 Why Buy From SGCCTV (Choicecycle)?

At SGCCTV, we provide:

• ✔️ Supply & installation
• ✔️ System integration (CCTV + Access Control + UPS)
• ✔️ Maintenance & repair services
• ✔️ On-site support across Singapore

🌐 Website: https://sgcctv.com.sg
📧 Email: enquiry@choicecycle.com.sg
📱 WhatsApp: +65 98534404

❓ Common Questions

Q1: Can DS-K4E100 work with fingerprint readers?
Yes, it integrates directly with Hikvision and third-party access control systems.

Q2: Is it suitable for glass or wooden doors?
Best for solid doors (wood/metal). Glass requires special brackets.

Q3: What happens if power fails?
Depends on configuration—can be fail-safe or fail-secure.

Q4: Is it better than magnetic lock?
Yes, for higher security and mechanical locking strength.

🏁 Conclusion

The Hikvision DS-K4E100 is a robust, intelligent, and secure locking solution for modern access control systems in Singapore. Whether for office or warehouse deployment, it delivers reliability, security, and seamless integration with biometric and RFID technologies.

HIKVISION DS-K4E100 Electric Motor Lock Intelligent Electric Lock Door Access Control Fingerprint Reader Electronic Door Lock Office Warehouse

🔌 Wiring Diagram – Hikvision DS-K4E100

(Fingerprint Reader + Exit Button + Door Sensor – Complete Setup)

Below is a standard professional wiring configuration used in Singapore office / warehouse deployments.

⚙️ 1. SYSTEM COMPONENTS

• Fingerprint Access Terminal (e.g. Hikvision DS-K1T804)
• DS-K4E100 Motor Lock
• 12V DC Power Supply
• Exit Push Button
• Door Magnetic Sensor (optional)

🔧 2. BASIC WIRING DIAGRAM (TEXT FORMAT)

[12V DC Power Supply]
        │
        ├── +12V  ───────────────┐
        │                        │
        │                        ▼
        │                [Fingerprint Terminal]
        │                        │
        │                        │ Relay Output (COM / NO / NC)
        │                        ▼
        │                 ┌───────────────┐
        │                 │               │
        └───────────────▶ │   DS-K4E100   │
                          │ Motor Lock    │
                          │               │
                          └───────────────┘

[Exit Button]
   │
   └──────────────▶ Fingerprint Terminal (Exit Input)

[Door Sensor]
   │
   └──────────────▶ Fingerprint Terminal (Door Status Input)

🔌 3. TERMINAL CONNECTION DETAILS

🔋 Power Supply

• +12V → Fingerprint terminal + Lock
• GND → Shared common ground

🔐 Lock Control (Critical)

From fingerprint terminal relay:

• COM → Lock +
• NO → Power + (for fail-secure)
• OR
• NC → Power + (for fail-safe)

👉 Selection depends on security requirement:

• Fail-secure = stays locked during power loss
• Fail-safe = unlocks during power loss

🚪 Exit Button

• Connect to EXIT / PUSH input on terminal
• Press → unlock door instantly

🚨 Door Sensor (Optional but recommended)

• Connect to DOOR SENSOR input
• Detect:
  • Door open too long
  • Forced entry

⚠️ 4. IMPORTANT INSTALLATION NOTES

✅ Use Separate Power Supply (Best Practice)

• Avoid powering lock directly from terminal
• Use dedicated 12V 3A–5A PSU

⚡ Add Surge Protection

Prevents:

• Lightning damage
• Power fluctuation failures

🔋 Add UPS Backup

Recommended: CHOICECYCLE

Ensures:

• Continuous operation during blackout
• No lock failure or system reboot

🔧 Cable Recommendation

• Power: 18AWG / 1.0mm cable
• Signal: CAT5e / shielded cable

🧠 5. COMMON WIRING MISTAKES

❌ Lock not unlocking
→ Wrong NO/NC connection

❌ Device reboot when unlocking
→ Power supply too weak

❌ Interference / unstable
→ No grounding / poor cable

📊 6. ADVANCED SETUP (OPTIONAL)

You can integrate with:

• Alarm system
• CCTV trigger recording
• Fire alarm (auto unlock during fire)

🏁 CONCLUSION

This wiring setup ensures:

• ✅ Stable operation
• ✅ Secure access control
• ✅ Professional-grade installation
