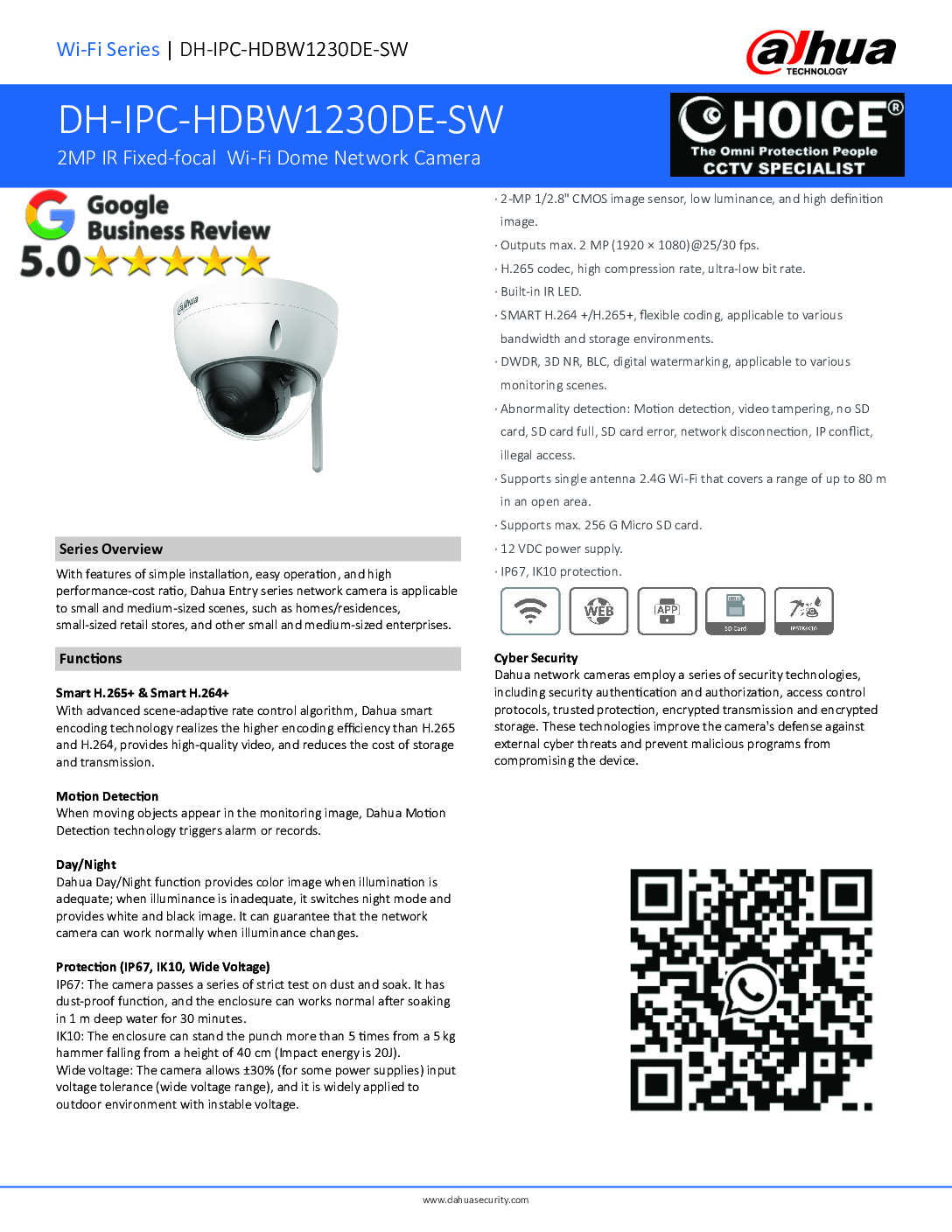

DAHUA DH-IPC-HDBW1230DE-SW-0280B WIFI Dome Camera 2MP 1080P IR LED 30 meters IP67 DC12V Smart PSS DSS DMSS Mobile App

DAHUA DH-IPC-HDBW1230DE-SW-0280B Wi-Fi Dome Camera | 2MP 1080P | 30m IR | IP67 IK10 | DMSS Mobile App CCTV Singapore

The DAHUA DH-IPC-HDBW1230DE-SW-0280B is a professional 2MP Full HD Wi-Fi dome network camera designed for homes, offices, retail shops, warehouses and commercial CCTV installations where wireless network connectivity is preferred.

It combines 1920 × 1080 Full HD video, 2.8mm wide-angle lens, 30m IR night vision, 2.4GHz Wi-Fi, RJ45 Ethernet, IP67 weather resistance, IK10 vandal resistance, H.265 compression, microSD recording up to 256GB and DMSS mobile viewing. (Dahua Security)

Key Specifications

These specifications are confirmed by Dahua’s official product page and datasheet. (Dahua Security)

2MP Full HD 1080P CCTV

The DH-IPC-HDBW1230DE-SW provides up to:

1920 × 1080 Full HD @ 25/30fps

This makes it suitable for general-purpose surveillance where reliable Full HD recording is required without the higher bandwidth and storage requirements of 4MP or 8MP CCTV. (Dahua Security)

Typical applications include entrances, offices, shops, corridors, lift lobbies, storerooms, warehouses and residential premises.

2.8mm Wide-Angle Lens

The -0280B suffix identifies the 2.8mm fixed-lens version. Dahua lists this exact ordering model as DH-IPC-HDBW1230DEP-SW-0280B in PAL-market documentation. (Dahua Security)

The 2.8mm lens provides approximately:

100° Horizontal Field of View

This wide viewing angle makes it particularly suitable for monitoring relatively broad areas from a short-to-medium distance. (Dahua Security)

30-Metre IR Night Vision

The camera incorporates 3 IR LEDs with an official illumination distance of up to:

30 METRES / 98 FT

When ambient light becomes insufficient, the camera can automatically transition to infrared night surveillance. (Dahua Security)

This provides continuous monitoring during both daytime and nighttime conditions.

2.4GHz Wi-Fi CCTV Camera

A major advantage of this model is integrated:

IEEE 802.11b/g/n 2.4GHz Wi-Fi

Dahua specifies wireless coverage of up to 80 metres in an open environment, although real-world range varies according to walls, interference, router/AP location and the surrounding RF environment. (Dahua Security)

A basic installation can therefore be:

DAHUA Wi-Fi Camera → Wi-Fi Router/AP → Network → DMSS / NVR

This reduces the need for a data cable between the camera and network switch.

Important: Wi-Fi does not mean wireless power.

The camera still requires a 12VDC power supply. (Dahua Security)

Wi-Fi + RJ45 Ethernet

Unlike some consumer Wi-Fi cameras, the DH-IPC-HDBW1230DE-SW also includes:

RJ45 10/100 Base-T Ethernet

This provides useful flexibility. (Dahua Security)

The camera can therefore be deployed through Wi-Fi or connected to a conventional wired Ethernet network.

For permanent professional CCTV installations, a wired network is generally preferable where cabling is practical because it avoids dependence on wireless signal conditions.

IP67 Weatherproof

Dahua rates the camera:

IP67

for protection against dust and water ingress under the applicable standard. (Dahua Security)

This makes the camera suitable for properly installed outdoor applications.

Weatherproof installation should still protect the 12VDC connector, RJ45 connector and cable joints appropriately.

IK10 Vandal Resistance

An important feature that distinguishes this model from many inexpensive Wi-Fi cameras is:

IK10 Vandal Protection

Dahua specifies both IP67 and IK10 protection, with a metal camera enclosure. (Dahua Security)

This makes the camera particularly attractive for accessible locations where a standard plastic indoor Wi-Fi camera may be unsuitable.

Up to 256GB microSD Recording

The camera supports:

microSD Card up to 256GB

for local edge recording. (Dahua Security)

This provides several deployment options:

Camera → microSD Recording

or

Camera → Network → NVR

or potentially:

Camera → microSD + Network Recording

depending on the system configuration.

Recording duration depends on bitrate, codec, frame rate, scene complexity and recording schedule.

Smart H.265+ Compression

The camera supports:

H.265

Smart H.265+

H.264

Smart H.264+. (Dahua Security)

Efficient compression helps reduce network bandwidth and storage requirements compared with less efficient encoding configurations.

For SD-card recording, this can be particularly valuable because storage capacity is limited.

DMSS Mobile App

The camera supports Dahua’s DMSS mobile platform for iOS and Android, with P2P among its supported interoperability/network functions. (Dahua Security)

A typical remote-viewing architecture is:

DAHUA Camera

↓

Wi-Fi / Router

↓

Internet

↓

DMSS Mobile App

This provides convenient mobile access when the system and user permissions are correctly configured.

SmartPSS & DSS

For PC and larger professional surveillance environments, Dahua officially lists:

SmartPSS + DSS + DMSS

as supported management software/platforms for this camera. (Dahua Security)

This allows the same camera family to be used beyond a simple standalone mobile-app installation.

For example:

Small System → DMSS

PC Monitoring → SmartPSS

Larger Professional Deployment → DSS

The exact functions available depend on the software version, licensing and system architecture.

ONVIF Support

The camera supports:

ONVIF Profile S + Profile G

as well as CGI and P2P. (Dahua Security)

ONVIF interoperability can allow integration with compatible third-party NVRs and VMS platforms, although compatibility should be verified before deployment.

CCTV Cybersecurity Features

The official specification also lists several network-security capabilities, including video/configuration encryption, Digest authentication, account lockout, security logs, X.509 certificates, HTTPS, trusted boot, trusted execution and trusted upgrade. (Dahua Security)

For business installations, the camera should still be configured using:

Strong Passwords + Current Firmware + Secure Wi-Fi + Restricted User Accounts + Proper Network Configuration

Wi-Fi Camera Troubleshooting

If a Wi-Fi CCTV camera frequently disconnects, the camera itself may not necessarily be faulty.

Check the complete path:

Camera Power → Wi-Fi Signal → Router/AP → Network → Internet → DMSS

Common problems include weak Wi-Fi signal, 2.4GHz interference, changed Wi-Fi password, router replacement, insufficient 12VDC power, IP conflict, Internet failure or camera configuration problems.

For critical surveillance, Wi-Fi signal strength should be tested at the actual camera position before installation.

SGCCTV DAHUA CCTV Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides DAHUA Wi-Fi Cameras, IP Cameras, NVRs, CCTV installation, Wi-Fi CCTV configuration, DMSS setup, SmartPSS configuration, DSS integration, CCTV troubleshooting, camera replacement and security-system maintenance.

Website: www.sgcctv.com.sg
Email: enquiry@choicecycle.com.sg
WhatsApp: +65 9853 4404

10 Frequently Asked Questions

1. Is DH-IPC-HDBW1230DE-SW a Wi-Fi camera?
Yes. It supports 2.4GHz IEEE 802.11b/g/n Wi-Fi, with Dahua specifying up to 80m wireless range in an open environment. (Dahua Security)

2. What resolution does it provide?
It provides up to 2MP / 1920 × 1080 Full HD at 25/30fps. (Dahua Security)

3. How far can the camera see at night?
Its integrated IR illumination is specified for up to 30 metres. (Dahua Security)

4. Is it weatherproof?
Yes. Dahua specifies IP67 weather protection. (Dahua Security)

5. Is the camera vandal-resistant?
Yes. It has an IK10-rated metal enclosure, providing substantially stronger physical protection than a typical indoor plastic Wi-Fi camera. (Dahua Security)

6. Does it support an SD card?
Yes. The camera supports a microSD card up to 256GB. (Dahua Security)

7. Which mobile app does it use?
Dahua lists DMSS as its mobile client for iOS and Android. (Dahua Security)

8. Does it work with SmartPSS and DSS?
Yes. Dahua officially lists SmartPSS, DSS and DMSS as supported management software. (Dahua Security)

9. Is the camera completely wireless?
No. Wi-Fi provides wireless network connectivity, but the camera requires a 12VDC power supply. (Dahua Security)

10. Can it connect by network cable instead of Wi-Fi?
Yes. It also includes a 10/100Mbps RJ45 Ethernet interface, so it can be connected to a wired network. (Dahua Security)
