HANWHA QNV-C6083R 2MP AI IR Vandal Dome Camera CCTV Camera Repair Korea Security System Samsung Security WISENET CCTV

HANWHA QNV-C6083R 2MP AI IR Vandal Dome Camera | WISENET Korea CCTV | IP66 IK10 | Business Intelligence | CCTV Repair Singapore

The HANWHA VISION WISENET QNV-C6083R is a professional 2MP AI IR Vandal-Resistant Network Dome Camera designed for commercial buildings, offices, factories, warehouses, schools, transport facilities and security-sensitive environments.

It combines Full HD 2MP video, AI-based person and vehicle detection, 3.2–10.2mm motorized varifocal lens, 30m IR night vision, 120dB WDR, WiseNR II, WiseStream III, business-intelligence analytics, microSD edge storage, PoE, IP66 weather resistance and IK10 vandal protection. (Hanwha Vision)

Important branding note: Hanwha Vision was formerly known as Samsung Techwin. For current product listings, “Hanwha Vision / Wisenet” is the correct manufacturer branding; “Samsung Security” is useful as historical product-family context.

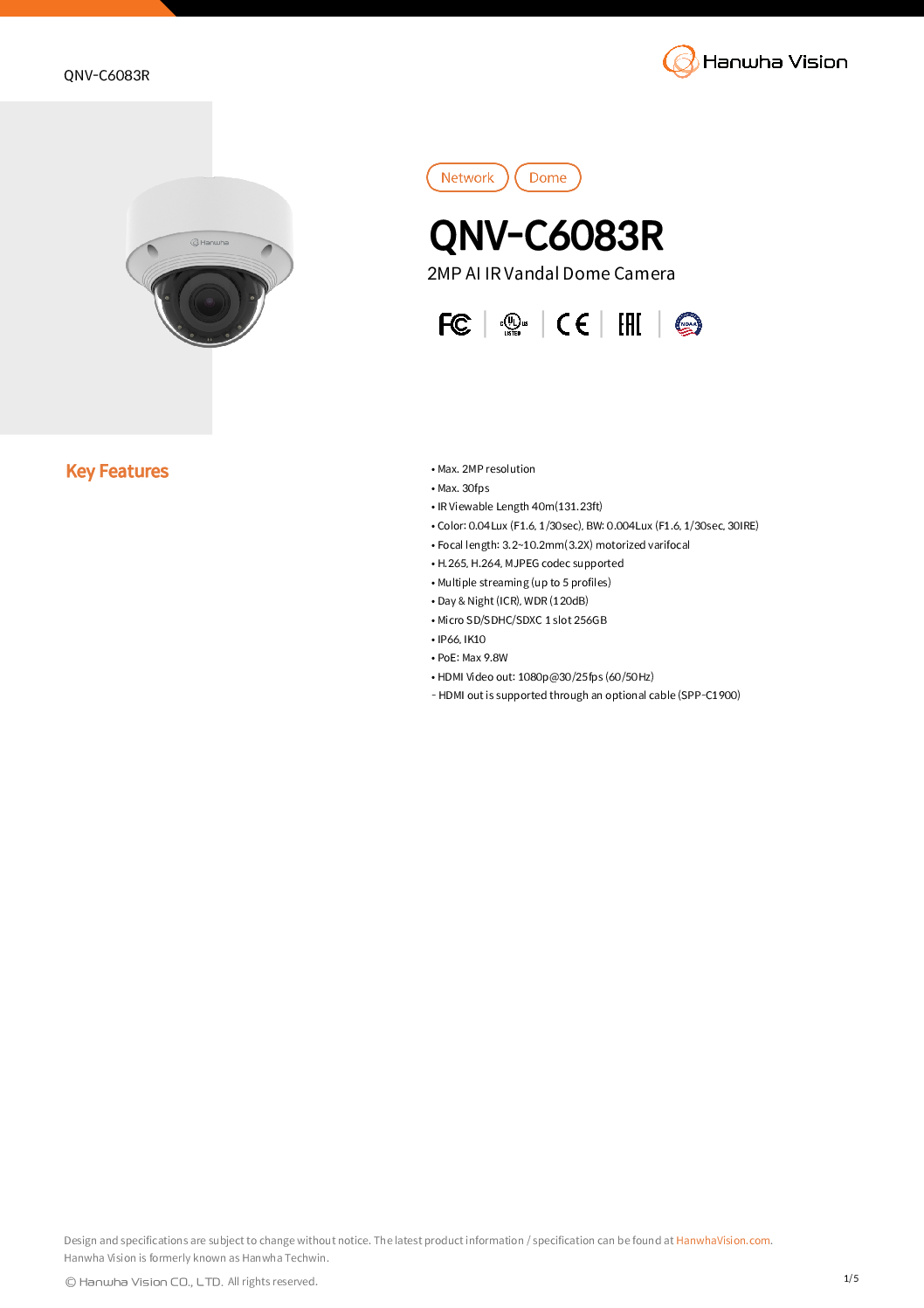

HANWHA QNV-C6083R Key Specifications

(Hanwha Vision)

AI-Powered CCTV Analytics

The QNV-C6083R uses an AI engine for object classification, allowing the surveillance system to distinguish relevant objects such as:

PERSON

CAR

BUS

TRUCK

MOTORCYCLE

BICYCLE

This is a major improvement over basic motion detection, where rain, shadows, vegetation or other environmental movement may generate unnecessary events. (Hanwha Vision)

A typical AI security workflow can be:

Camera detects movement

→ AI classifies Person / Vehicle

→ Virtual Line or Area Rule

→ Relevant Event

→ Recording / Search / Security Response

Intelligent Video Analytics

The QNV-C6083R supports AI-assisted analytics including:

Object Detection

Motion Detection

Virtual Line Crossing

Direction Detection

Loitering

Intrusion Detection

Area Enter

Area Exit

It also provides analytics for defocus detection, tampering and object appear/disappear events. (Hanwha Vision)

This makes the camera useful for perimeter security and restricted-area monitoring rather than simply continuous video recording.

Business Intelligence Camera

The QNV-C6083R can also provide business-intelligence analytics based on its AI engine, including:

People Counting

Vehicle Counting

Queue Management

Heatmap

(Hanwha Vision)

This expands the camera beyond conventional security.

For example, a retail or commercial environment could use CCTV analytics to understand:

Visitor Traffic

Busy Periods

Queue Conditions

Movement Patterns

while simultaneously using the camera for security surveillance.

3.2–10.2mm Motorized Varifocal Lens

The camera uses a:

3.2–10.2mm 3.2× Motorized Varifocal Lens

providing approximately:

103.1° horizontal at Wide

to

31.5° horizontal at Tele. (Hanwha Vision)

This gives installers considerably more flexibility than a fixed 2.8mm or 4mm camera.

Wide Angle

Suitable for entrances, corridors and broad-area surveillance.

Telephoto

Suitable when a narrower field of view and greater pixel concentration on a target are required.

The field of view can be adjusted during commissioning to match the actual surveillance objective.

30-Metre IR Night Vision

Hanwha specifies an IR viewable distance of:

Up to 30 metres

for the QNV-C6083R. (Hanwha Vision)

The camera provides:

Colour during adequate lighting

→ Automatic Day/Night ICR

→ IR surveillance in darkness

with minimum illumination specified at 0 Lux when the IR LEDs are operating. (Hanwha Vision)

This makes it suitable for 24/7 monitoring of entrances, external corridors, sheltered outdoor areas and building perimeters.

120dB WDR

The QNV-C6083R supports:

120dB Wide Dynamic Range

which helps retain details when bright and dark areas exist in the same scene. (Hanwha Vision)

This is particularly useful for cameras facing:

Glass Entrances

Loading Bays

Building Entrances

Bright Windows

Car Park Entrances

Without WDR, a person standing against a bright background can appear excessively dark.

WiseNR II AI Noise Reduction

Hanwha specifies:

WiseNR II – AI-Based Noise Reduction

for this camera. (Hanwha Vision)

Noise reduction becomes especially important under low-light conditions because excessive image noise can increase bandwidth and storage consumption while reducing useful image detail.

AI-assisted noise processing helps optimise the surveillance image for both viewing and recording.

WiseStream III

The camera supports:

WiseStream III

along with H.265/H.264 compression. (Hanwha Vision)

WiseStream is Hanwha Vision’s bandwidth and storage optimisation technology.

For CCTV projects involving many cameras, efficient compression can help reduce:

Network Bandwidth

NVR Storage Requirements

Server Traffic

Long-Term Storage Cost

while retaining more detail in important areas of the image.

Up to 256GB microSD Edge Recording

The QNV-C6083R supports:

microSD / SDHC / SDXC up to 256GB

for local edge storage. (Hanwha Vision)

A resilient CCTV architecture can therefore use:

QNV-C6083R

→ Local microSD Recording

and

→ Network NVR / VMS Recording

Edge recording can be useful as supplementary storage or to help protect recording continuity depending on the system configuration.

ONVIF Compatibility

The camera supports:

ONVIF Profile S / G / T / M

SUNAPI HTTP API

(Hanwha Vision)

This provides integration options with compatible NVR and VMS platforms.

For maximum analytics functionality, however, using the camera with a compatible Hanwha Vision Wisenet NVR or management platform is generally preferable to relying solely on basic third-party ONVIF video integration.

IP66 Weatherproof

The QNV-C6083R carries an:

IP66 Rating

making it suitable for appropriately installed indoor and outdoor surveillance applications. (Hanwha Vision)

Hanwha specifies an operating range of:

-30°C to +55°C

which gives the camera considerable environmental tolerance. (Hanwha Vision)

For outdoor installations, appropriate weatherproof cable termination and junction-box protection remain important.

IK10 Vandal-Resistant Dome

The camera also carries:

IK10 Impact Resistance

making it particularly suitable for accessible locations where cameras may be vulnerable to physical impact or deliberate interference. (Hanwha Vision)

Typical applications include:

Schools

Lift Lobbies

Car Parks

Public Corridors

Commercial Buildings

Factories

Common Areas

Security-Sensitive Facilities

PoE Installation

The QNV-C6083R supports Power over Ethernet, with Hanwha listing maximum PoE consumption of approximately 12.95W. (Hanwha Vision)

A standard installation can therefore be:

HANWHA QNV-C6083R

↓

CAT6 – POWER + DATA

↓

PoE NETWORK SWITCH

↓

WISENET NVR / VMS

This simplifies installation because a separate 230VAC power point is not normally required at each camera.

Korea Security Technology

Hanwha Vision is a South Korean video-surveillance manufacturer and the successor branding to Samsung Techwin’s security business.

For organisations familiar with older:

SAMSUNG CCTV / SAMSUNG TECHWIN

equipment, the current professional surveillance brand is:

HANWHA VISION / WISENET

This distinction is useful when upgrading older Samsung-branded CCTV systems.

Replacing Older Samsung / Wisenet CCTV

The QNV-C6083R can be considered when upgrading older fixed or varifocal IP dome cameras where the project requires newer AI analytics.

An upgrade can move from:

Traditional Motion Detection

to:

AI PERSON / VEHICLE CLASSIFICATION

and from:

Security Recording Only

to:

SECURITY + BUSINESS INTELLIGENCE

Existing NVR compatibility, PoE capacity, network bandwidth, VMS version and analytics support should be checked before replacement.

CCTV Camera Repair Singapore

A camera showing “offline” does not automatically mean the camera itself has failed.

Common causes include:

PoE Switch Failure

CAT6 Cable Fault

Damaged RJ45 Connector

IP Address Conflict

Network Configuration

NVR/VMS Configuration

Camera Hardware Failure

Water-Damaged Connection

A proper troubleshooting sequence is:

CAMERA → RJ45 → CAT6 → PoE SWITCH → NETWORK → NVR / VMS

This avoids replacing an expensive AI camera when the actual fault is cabling or network infrastructure.

QNV-C6083R vs Newer XNV-C6083R

It is important not to confuse the QNV-C6083R with Hanwha’s newer XNV-C6083R.

The QNV-C6083R uses a 3.2–10.2mm lens, 30m IR, 120dB WDR and up to 30fps at 2MP. (Hanwha Vision)

The newer XNV-C6083R steps up to a 2.8–12mm 4.3× lens, 40m WiseIR, 150dB extremeWDR, up to 60fps at 2MP, gyro-based image stabilisation and up to 512GB standard microSD storage. (Hanwha Vision Support Portal)

For a new high-performance project, the X-series model is worth comparing. For an existing Q-series specification or replacement project, verify the exact model before substitution.

SGCCTV Hanwha Wisenet CCTV Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides Hanwha Vision Wisenet cameras, AI CCTV, NVR systems, PoE switches, CAT6 networking, CCTV troubleshooting, Samsung/Wisenet camera replacement, security-system upgrades and preventive maintenance.

Website: www.sgcctv.com.sg
Email: enquiry@choicecycle.com.sg
WhatsApp: +65 9853 4404

Hanwha Vision official website

10 Frequently Asked Questions

1. What is the Hanwha QNV-C6083R?
It is a 2MP AI IR vandal-resistant network dome camera from Hanwha Vision’s Wisenet surveillance range. (Hanwha Vision)

2. Is QNV-C6083R an AI camera?
Yes. It provides AI-based person and vehicle classification together with intelligent video analytics. (Hanwha Vision)

3. Can it identify different vehicle types?
Its analytics can classify vehicles including cars, buses, trucks, motorcycles and bicycles. (Hanwha Vision)

4. Does it have a motorized lens?
Yes. It uses a 3.2–10.2mm 3.2× motorized varifocal lens. (Hanwha Vision)

5. How far can it see using IR?
Hanwha specifies an IR viewable distance of up to 30 metres. (Hanwha Vision)

6. Is it vandal resistant?
Yes. It carries an IK10 impact-resistance rating together with IP66 weather protection. (Hanwha Vision)

7. Does it support people counting?
Yes. Its AI-based business-intelligence functions include people counting, vehicle counting, queue management and heatmap. (Hanwha Vision)

8. Can it record onto a microSD card?
Yes. Hanwha lists microSD/SDHC/SDXC storage up to 256GB. (Hanwha Vision)

9. Is Wisenet still Samsung CCTV?
The security business historically operated under Samsung Techwin. The current manufacturer branding is Hanwha Vision, with Wisenet continuing as a recognised surveillance product/platform name.

10. Can SGCCTV repair or replace existing Samsung/Wisenet CCTV cameras?
Yes. SGCCTV can troubleshoot the camera, CAT6 cabling, PoE network, NVR/VMS and associated infrastructure before recommending repair, replacement or system upgrading.
