HIKVISION DS-2CD2543G2-LI DOME CAMERA 4MP AcuSeek Acusense Smart Hybrid Light Mini Dome Network Camera CCTV Camera Repair

HIKVISION DS-2CD2543G2-LI 4MP AcuSense Smart Hybrid Light Mini Dome Network Camera | CCTV Camera Repair Singapore

The HIKVISION DS-2CD2543G2-LI is a professional 4MP AcuSense Smart Hybrid Light Fixed Mini Dome Network Camera designed for homes, offices, retail shops, warehouses, factories, commercial buildings and professional CCTV security installations.

Combining 4MP high-resolution imaging, AcuSense Deep Learning Human & Vehicle Classification, Smart Hybrid Light, 120dB True WDR, H.265+ compression, IP67 weather protection and IK08 vandal resistance, the DS-2CD2543G2-LI delivers intelligent surveillance in a compact mini-dome design.

It is particularly suitable for entrances, corridors, offices, retail areas and other locations where a compact CCTV camera is preferred.

Key Specifications

• Brand: HIKVISION
• Model: DS-2CD2543G2-LI
• Camera Type: Fixed Mini Dome Network Camera
• Resolution: 4 Megapixel
• Maximum Resolution: 2688 × 1520
• Image Sensor: 1/2.9″ Progressive Scan CMOS
• Lens Options: 2.8mm / 4mm
• Aperture: F1.6
• AI Technology: AcuSense
• Classification: Human & Vehicle
• Smart Hybrid Light: IR + White Light
• Supplemental Light Modes: 3
• Maximum Light Distance: Up to 30m
• True WDR: 120dB
• Compression: H.265+ / H.265 / H.264+ / H.264
• Network: RJ45 Ethernet
• Power: 12VDC / PoE
• PoE Standard: IEEE 802.3af
• Weather Protection: IP67
• Vandal Resistance: IK08
• ONVIF: Supported
• Hik-Connect: Supported through compatible Hikvision system configuration

4MP High-Resolution CCTV

The DS-2CD2543G2-LI provides a maximum resolution of:

2688 × 1520

This delivers significantly more detail than traditional 1080P CCTV.

Higher image resolution can assist security operators when reviewing:

• People
• Vehicles
• Entrances
• Corridors
• Loading Areas
• Office Activity
• Retail Activity
• Security Incidents

Actual identification performance depends on installation distance, lens selection, lighting and camera position.

AcuSense Deep Learning

One of the strongest features of the DS-2CD2543G2-LI is HIKVISION AcuSense.

AcuSense uses deep-learning algorithms to classify:

HUMANS

and

VEHICLES

This allows the security system to focus on important targets instead of treating every movement as equally significant.

For example:

Tree Movement → Lower Relevance

Human Enters Area → Security Event

Vehicle Enters Area → Security Event

This can substantially improve the usefulness of motion and perimeter alarms.

Smart Hybrid Light

The DS-2CD2543G2-LI combines:

IR LIGHT

WHITE LIGHT

with three supplemental-light modes.

Smart Hybrid Light gives the CCTV system greater flexibility at night compared with a conventional IR-only camera.

Depending on the configured mode and event conditions, the camera can use infrared or visible supplementary lighting to support night surveillance.

Up to 30m Supplemental Lighting

Hikvision specifies a supplemental-light range of up to approximately:

30 METRES

This makes the mini dome suitable for many indoor and outdoor surveillance locations.

Actual effective distance depends on environmental conditions, target reflectivity and camera installation.

120dB True WDR

Entrances and windows can create difficult CCTV scenes.

For example:

Bright Outdoor Background + Dark Indoor Foreground

Without good WDR performance, the person’s face may appear too dark.

The DS-2CD2543G2-LI provides:

120dB True Wide Dynamic Range

to improve imaging in challenging high-contrast lighting conditions.

This makes it useful for:

• Building Entrances
• Glass Doors
• Reception Areas
• Loading Bays
• Office Entrances
• Corridors Facing Windows

H.265+ Video Compression

The camera supports Hikvision’s H.265+ compression technology.

Efficient compression can reduce:

• NVR Storage Consumption
• Network Bandwidth
• HDD Requirements

while maintaining useful surveillance video quality.

Actual storage savings depend on scene complexity, bitrate, resolution, frame rate and recording configuration.

IP67 Weather Protection

The DS-2CD2543G2-LI carries an:

IP67

water and dust resistance rating.

This allows it to be used for properly installed indoor and outdoor CCTV applications.

Outdoor installations should still use professional weatherproof cable termination and suitable junction boxes where required.

IK08 Vandal Resistance

The mini dome also carries an:

IK08

vandal-resistance rating.

This makes it more suitable than an unprotected indoor camera for accessible locations where accidental or deliberate physical impact may occur.

PoE – Power + Data Through One Cable

The DS-2CD2543G2-LI supports:

IEEE 802.3af PoE

A typical installation can therefore use:

HIKVISION Camera → CAT6 Cable → PoE Switch

The same network cable carries:

POWER + DATA

This simplifies installation and centralises CCTV power at the PoE switch.

2.8mm or 4mm Lens

The DS-2CD2543G2-LI is available with fixed lens options.

2.8mm – Wider View

Suitable for:

• Offices
• Retail Areas
• Rooms
• Entrances
• Corridors requiring wider coverage

4mm – Narrower View / More Target Detail

Suitable where the installer wants to concentrate coverage on a more specific area.

Correct lens selection should be based on the actual surveillance objective rather than simply choosing the widest available lens.

AcuSense vs AcuSeek

These two Hikvision technologies should not be confused.

AcuSense

The DS-2CD2543G2-LI uses deep learning to classify human and vehicle targets.

AcuSeek

AcuSeek is Hikvision’s intelligent video-search technology that can search compatible recorded footage using natural-language descriptions and other search criteria.

Therefore, for this camera, the technically accurate core description is:

4MP AcuSense Smart Hybrid Light Mini Dome Network Camera

When deployed with a compatible Hikvision AcuSeek NVR/platform, more advanced intelligent video-search workflows may be available depending on the complete system configuration.

Ideal Applications

The HIKVISION DS-2CD2543G2-LI is suitable for:

• Homes
• Offices
• Retail Shops
• Warehouses
• Factories
• Schools
• Clinics
• Commercial Buildings
• Condominiums
• Corridors
• Reception Areas
• Building Entrances
• Loading Areas
• Car Parks
• Security Control Systems

CCTV Camera Repair Singapore

A CCTV camera going offline does not always mean the camera itself is faulty.

Common causes include:

• Camera Failure
• PoE Port Failure
• Network Cable Failure
• RJ45 Connector Problem
• PoE Switch Failure
• NVR Configuration
• IP Address Conflict
• Power Supply Failure
• Network Configuration
• Water-Damaged Connection
• Firmware Problems

Professional troubleshooting should follow:

CAMERA → CAT6 → RJ45 → PoE SWITCH → NETWORK → NVR

before replacing equipment.

Upgrade Older CCTV Cameras

Older CCTV installations can potentially be upgraded from:

2MP / 1080P Camera

to:

4MP + AcuSense + Smart Hybrid Light

This can provide higher image resolution together with intelligent human/vehicle classification.

However, the existing NVR, PoE switch, network bandwidth and storage capacity should be checked for compatibility before upgrading.

SGCCTV HIKVISION CCTV Repair & Installation Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides:

• HIKVISION CCTV Cameras
• HIKVISION AcuSense
• Smart Hybrid Light Cameras
• Mini Dome Cameras
• CCTV Installation
• CCTV Camera Replacement
• NVR Installation
• PoE Switches
• CAT6 Cabling
• Network Troubleshooting
• Hik-Connect Configuration
• CCTV Repair
• CCTV Upgrading
• Preventive Maintenance

Website: www.sgcctv.com.sg

Email: enquiry@choicecycle.com.sg

WhatsApp: +65 9853 4404

Frequently Asked Questions

1. What is the HIKVISION DS-2CD2543G2-LI?

The DS-2CD2543G2-LI is a 4MP AcuSense Smart Hybrid Light Fixed Mini Dome Network Camera designed for intelligent CCTV surveillance.

2. What is the maximum resolution?

The camera provides up to 2688 × 1520 resolution, approximately 4 megapixels.

3. Does DS-2CD2543G2-LI support AcuSense?

Yes. It supports deep-learning Human and Vehicle Classification through Hikvision AcuSense technology.

4. Does it have Smart Hybrid Light?

Yes. The camera integrates IR and white supplementary lights and provides three supplemental-light modes.

5. How far can it see at night?

Hikvision specifies supplemental illumination up to approximately 30 metres, depending on environmental conditions.

6. Is DS-2CD2543G2-LI waterproof?

It has an IP67 water and dust resistance rating, making it suitable for appropriately installed outdoor applications.

7. Is the mini dome vandal resistant?

Yes. Hikvision specifies IK08 vandal resistance.

8. Does it support PoE?

Yes. It supports IEEE 802.3af PoE, allowing network data and electrical power to travel through one Ethernet cable.

9. Does the DS-2CD2543G2-LI itself have AcuSeek?

The camera is officially specified as an AcuSense camera. AcuSeek is an intelligent video-search technology associated with compatible Hikvision NVR/platform configurations. For accurate product advertising, use AcuSense as the camera’s core AI feature.

10. Does SGCCTV provide HIKVISION CCTV repair and replacement?

Yes. SGCCTV Choicecycle provides CCTV camera troubleshooting, PoE testing, CAT6 cabling, NVR configuration, camera replacement, Hik-Connect setup, CCTV upgrading and preventive maintenance in Singapore.

15 Facebook Hashtags

#Hikvision #DS2CD2543G2LI #AcuSense #SmartHybridLight #4MPCamera #MiniDome #DomeCamera #IPCamera #PoECamera #AICCTV #CCTVRepair #SecurityCamera #CCTVSingapore #SGCCTV #Choicecycle

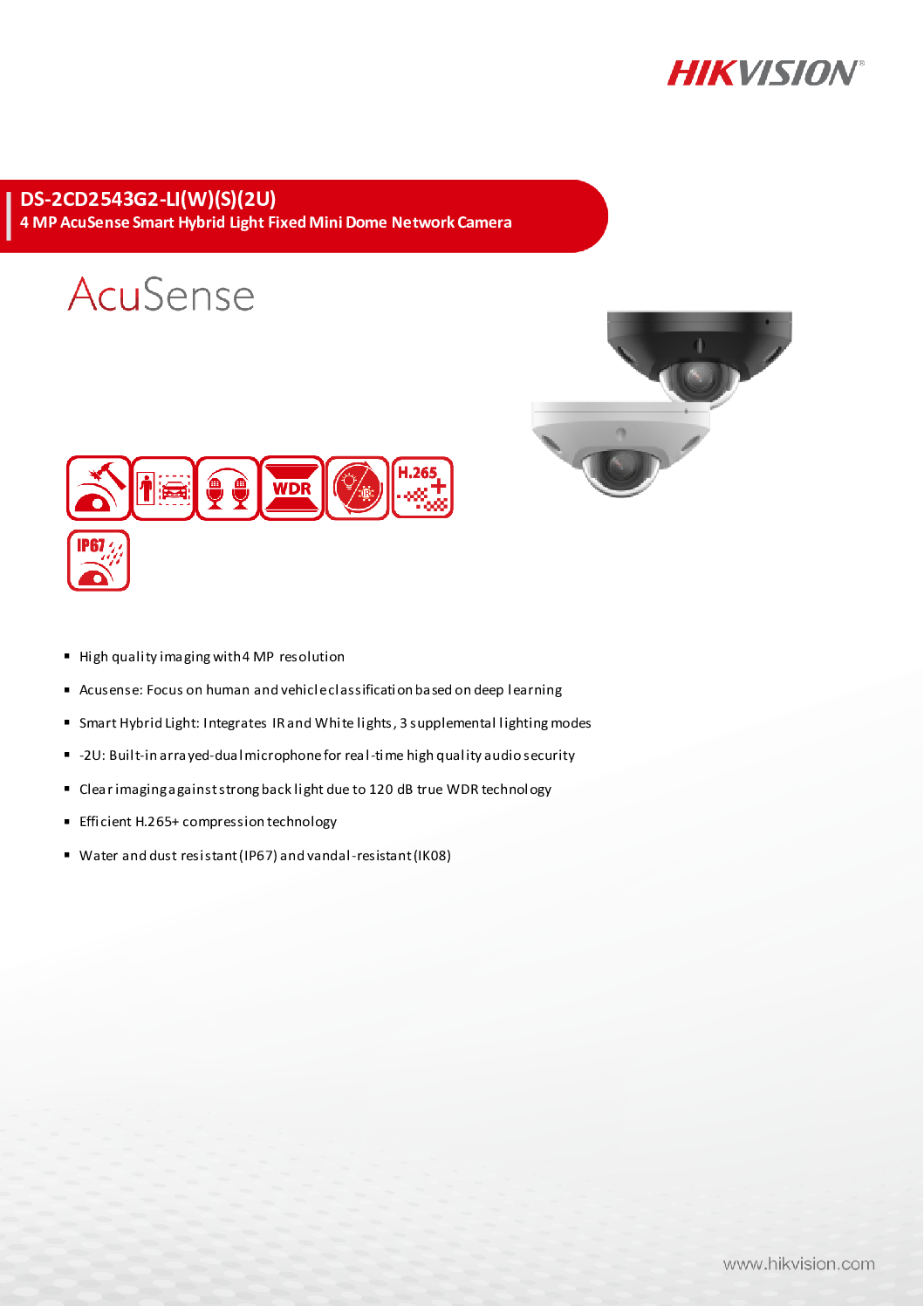

Hikvision’s official datasheet confirms the key features: 4MP, AcuSense human/vehicle classification, Smart Hybrid Light with three supplemental-light modes, 120dB True WDR, H.265+, IP67 and IK08. (Hikvision)

Hikvision DS-2CD2543G2-LI official datasheet
